Heavy-Duty 8x5 Trailers Built for Every Australian Hauling Job

The 8x5 trailer footprint (2400mm x 1535mm deck) is widely regarded as Australia's undisputed all-rounder. Offering maximum cargo flexibility without excessive road overhang, our 8x5 range represents our most diverse vehicle lineup—delivering purpose-built solutions for homeowners, landscapers, earthmovers, rural properties, and mobile tradespeople.

Key Build Features & Specifications

• Hot-Dipped Galvanised Finish: Complete rust and corrosion protection across the chassis, body, and sub-frame, designed to endure harsh coastal air, job site mud, and all-weather outdoor storage.
• Reinforced Chassis & Extended Drawbars: Heavy-walled RHS steel box tube framing with extended 100x50mm or 150x50mm drawbars for superior highway tracking, enhanced towing stability, and effortless reversing.
• Solid Checker Plate Steel Flooring: One-piece, fully seam-welded checker plate floors that prevent sagging and provide high-traction durability under heavy point loads.
• Multi-Leaf Eye-to-Eye & Rocker Roller Suspension: Fitted with 7-leaf/9-leaf eye-to-eye springs on single axle units, and heavy-duty tandem rocker roller suspension systems for optimal load sharing and dampening.
• Comprehensive Braking Systems: Available in unbraked (750kg), mechanical disc braked (1020kg – 2000kg), and 4-wheel electric braked setups (2800kg – 4500kg ATM).

Available 8x5 Configurations

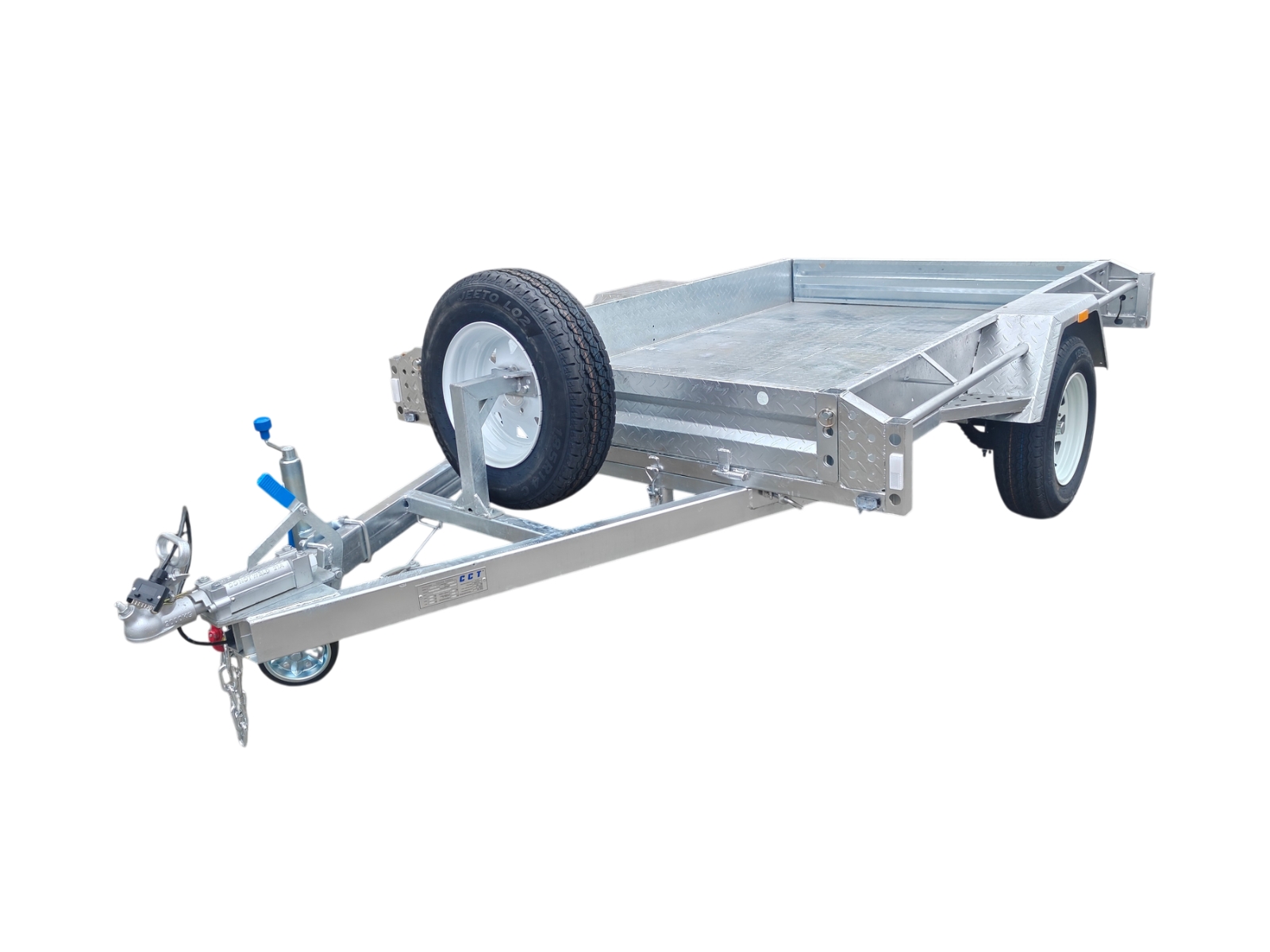

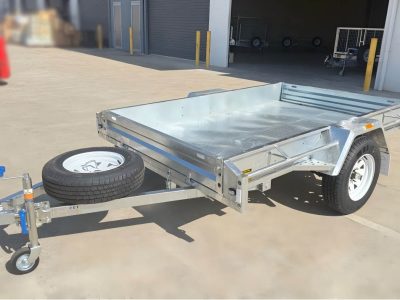

• 8x5 Single Axle Box Trailers (750kg – 1400kg ATM): Available in Y-Series fully welded, Premium Tiltable, and Super Heavy Duty (SHD) braked variants—ideal for garden maintenance, furniture transport, and light trade runs.
• 8x5 Tandem Dual-Axle Box Trailers (2000kg – 3500kg ATM): High-capacity commercial workhorses with full-length tie rails, tie-down gussets, and 1800mm drawbars for site materials and pallet hauling.

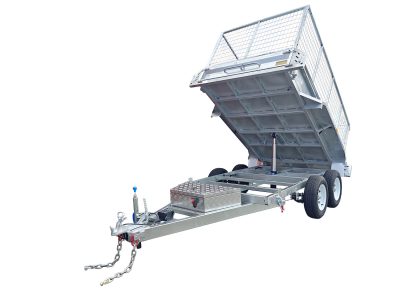

• 8x5 Hydraulic Tipper Trailers (3200kg – 4500kg ATM): High-performance Q-Series and X-Series tippers powered by 12V hydraulic power packs and multi-stage rams for instant unloading of soil, aggregate, and rubble.
• 8x5 ATV, Mower & Plant Trailers (750kg – 3000kg ATM): Specialised beavertail rear sections, low-approach ramps, and integrated tie-downs tailored for golf carts, ride-on mowers, ATVs, and mini excavators.
• 8x5 Next-Gen Tradesman Trailers: Fully enclosed, weatherproof dual-axle trade bodies featuring integrated shelving, lockable gullwing doors, and ladder racks for secure tool storage.

Popular Upgrades & Accessories

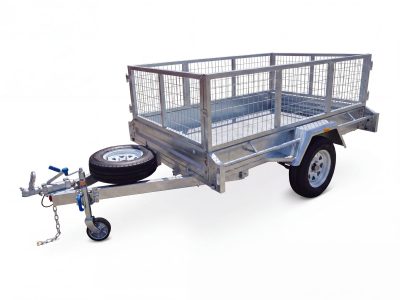

• Galvanised Mesh Cages: Removable 600mm and 900mm heavy-duty cages featuring dual swing-open gates for extra load volume.
• Loading Ramps & Ramp Tailgates: Heavy-duty rear mesh ramp tailgates and slide-out aluminium ramps for machinery loading.
• Fitted Covers & Canopies: Weatherproof heavy-duty PVC canvas covers designed to protect cargo and tools against weather.
• Toolboxes & Spare Wheel Mounts: Aluminium checker plate drawbar toolboxes, heavy-duty swivel jockey wheels, and matching spare wheels.
