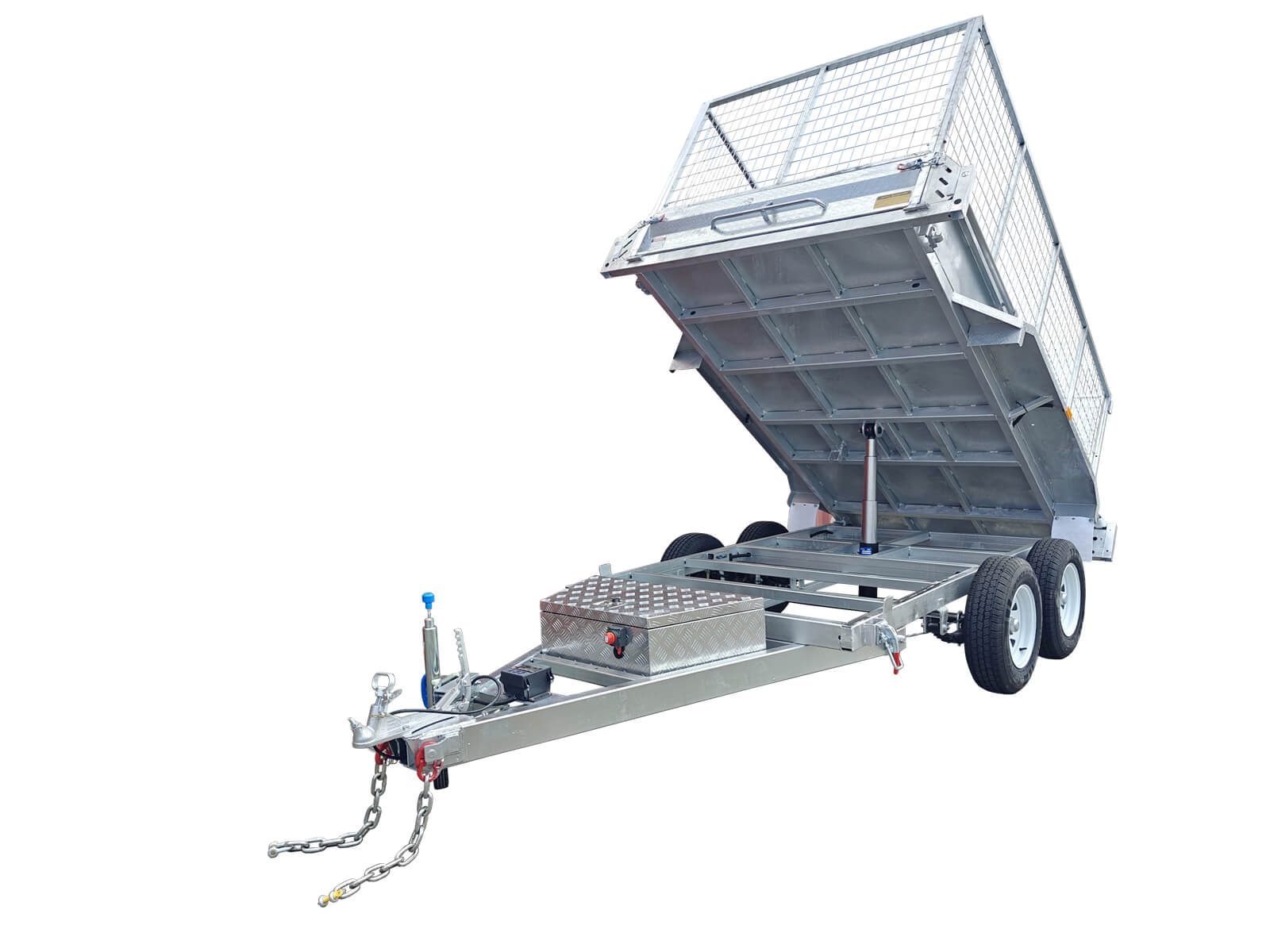

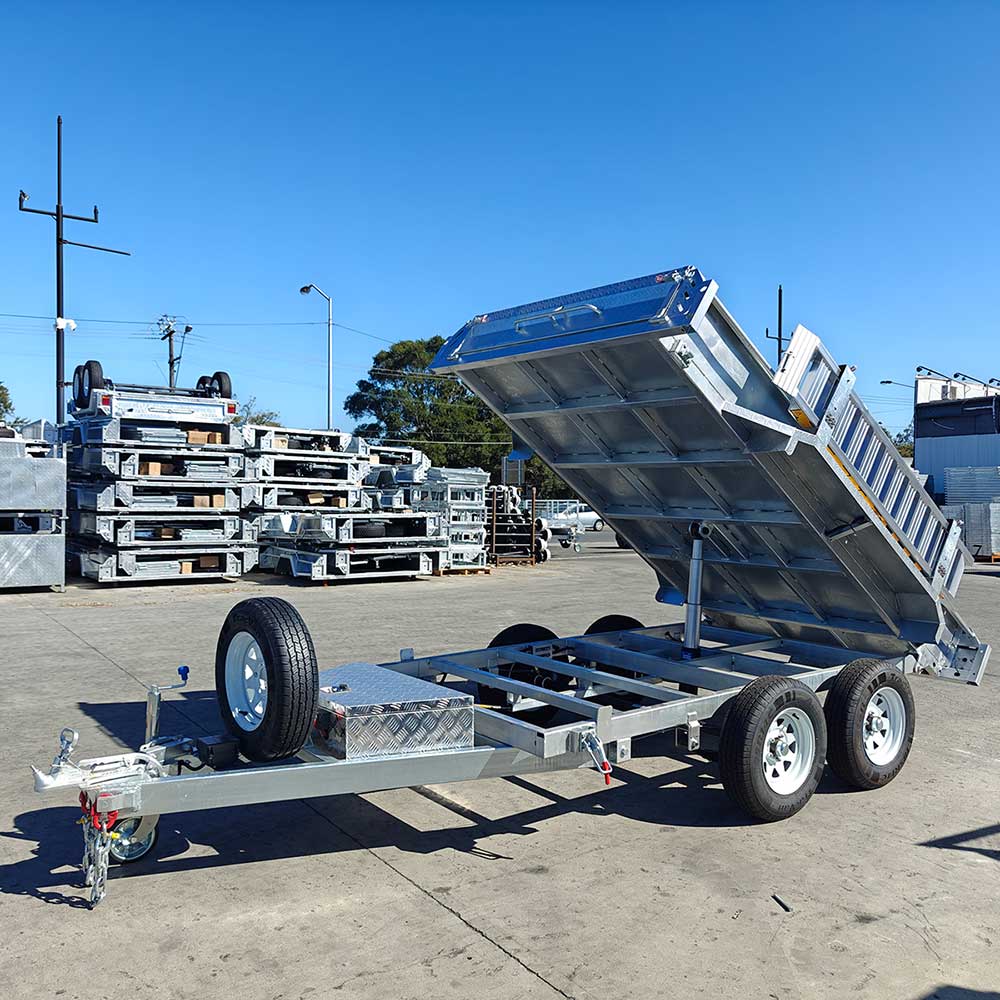

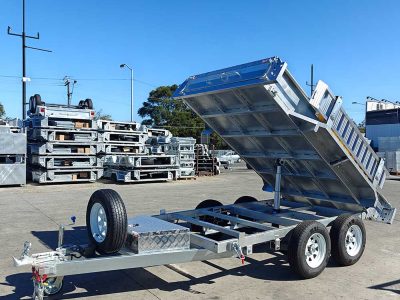

10×5 Hydraulic Tipper Box Trailer – 3200kg ATM | Q-Series
The Century Camper Trailers (CCT®) 10×5 Q-Series Hydraulic Tipper Trailer is an extended-deck commercial workhorse designed for trades, earthmovers, and demolition crews needing substantial load volume. Combining a spacious 10-foot deck length with a 3200kg ATM rating and a 5-tonne 4-stage hydraulic ram, it effortlessly handles long materials, bulky trade waste, and high-volume aggregates with one-touch tipping convenience.
Comparing Capacity & Models?
Need Maximum 3.5T Legal Towing Capacity?
Upgrade to the maximum legal limit for standard 50mm tow ball couplings with the 10×5 Hydraulic Tipper Trailer 3500kg ATM (Q-Series) for higher payload margin.
Comparing Deck Sizes?
See the more compact 8×5 Hydraulic Tipper Trailer (Q-Series) or the extra-wide 10×6 Hydraulic Tipper Trailer (Q-Series).
Need Severe-Duty / 4.5T Chassis Strength?
Explore our reinforced heavy machinery transport model in the 10×5 X-Series Hydraulic Tipper (3500kg/4500kg ATM).
Key Engineering & Operational Features
- Extended 10-Foot Usable Deck: Provides essential length for 3.0m timber posts, plasterboards, PVC pipes, and mini equipment while retaining box trailer practicality.
- 5-Tonne 4-Stage Hydraulic Ram: High-angle tipping geometry ensures heavy, compact aggregates and wet soils slide out freely without sticking or manual shovelling.
- Self-Contained Power Unit: 12V high-pressure hydraulic pump housed in a secure, lockable weatherproof steel front toolbox; includes a deep-cycle battery and push-button remote hand pendant.
- Dual-Axle Parallel 10-Inch Electric Brakes: Delivers balanced stopping performance under load, complete with an integrated ADR-compliant emergency breakaway system.
- Heavy-Duty Tandem Suspension: Engineered leaf spring pack absorbs shock loads and reduces body roll when negotiating uneven terrain and job sites.
- Structural Hot-Dip Galvanised Chassis: Complete zinc immersion provides long-lasting protection against rust, moisture, and road chemicals inside and out.
- Industrial Checker Plate Floor: Reinforced with structural sub-floor ribbing to withstand point loading, heavy rocks, and tracked equipment.
Technical Specifications
| Model / Series | 10×5 Hydraulic Tipper | Q-Series (TB-HYDTBTQ32105) |
| Aggregate Trailer Mass (ATM) | 3,200 kg |
| Internal Usable Dimensions | Approx. 3000 mm × 1500 mm (10ft × 5ft) |
| Hydraulic Lift System | 4-Stage Multi-Cylinder Ram, 5,000 kg Rated Lifting Capacity |
| Axles & Suspension | Tandem Axle, Parallel Heavy-Duty Leaf Spring Suspension |
| Braking System | Dual-Axle 10″ Electric Brakes with Emergency Breakaway System |
| Chassis & Finish | Fully Welded Structural RHS Steel, Hot-Dip Galvanised |
| Wheels & Tyres | 14″ Sunraysia-Style Rims with Light Truck (LT) Rated Tyres |
| Tailgate & Tie-Downs | Full Perimeter Tie-Down Rails & Removable/Drop-Down Tailgate |
| Jockey Wheel | Heavy-Duty Swing-Up Jockey Wheel Included |
Practical Trade & Rural Applications
- Large-Volume Bulk Material Delivery: Extended deck allows balanced transport and clean dumping of topsoil, road base, river gravel, and mulch.
- Building & Framing Supplies: Carry 3-metre timber framing, steel lintels, and standard sheets flat on the bed.
- Site Waste & Demolition: Ideal bin-alternative for moving bulky demolition debris, scrap timber, plaster, and branch cuttings.
- Compact Machinery & Mowers: Transport commercial zero-turn mowers, trenchers, or mini loaders safely when equipped with certified loading ramps.
Why Choose Century Camper Trailers®?
- 10+ Years of Manufacturing Heritage: Trusted by contractors, trades, and commercial operators across Australia.
- 24-Month Structural Warranty: Supported directly by our Queensland branch network.
- Same-Day QLD Registration: Drive-away on-site registration service available upon collection.
- Commercial Finance Support: Competitive finance solutions tailored for business and individual customers.
