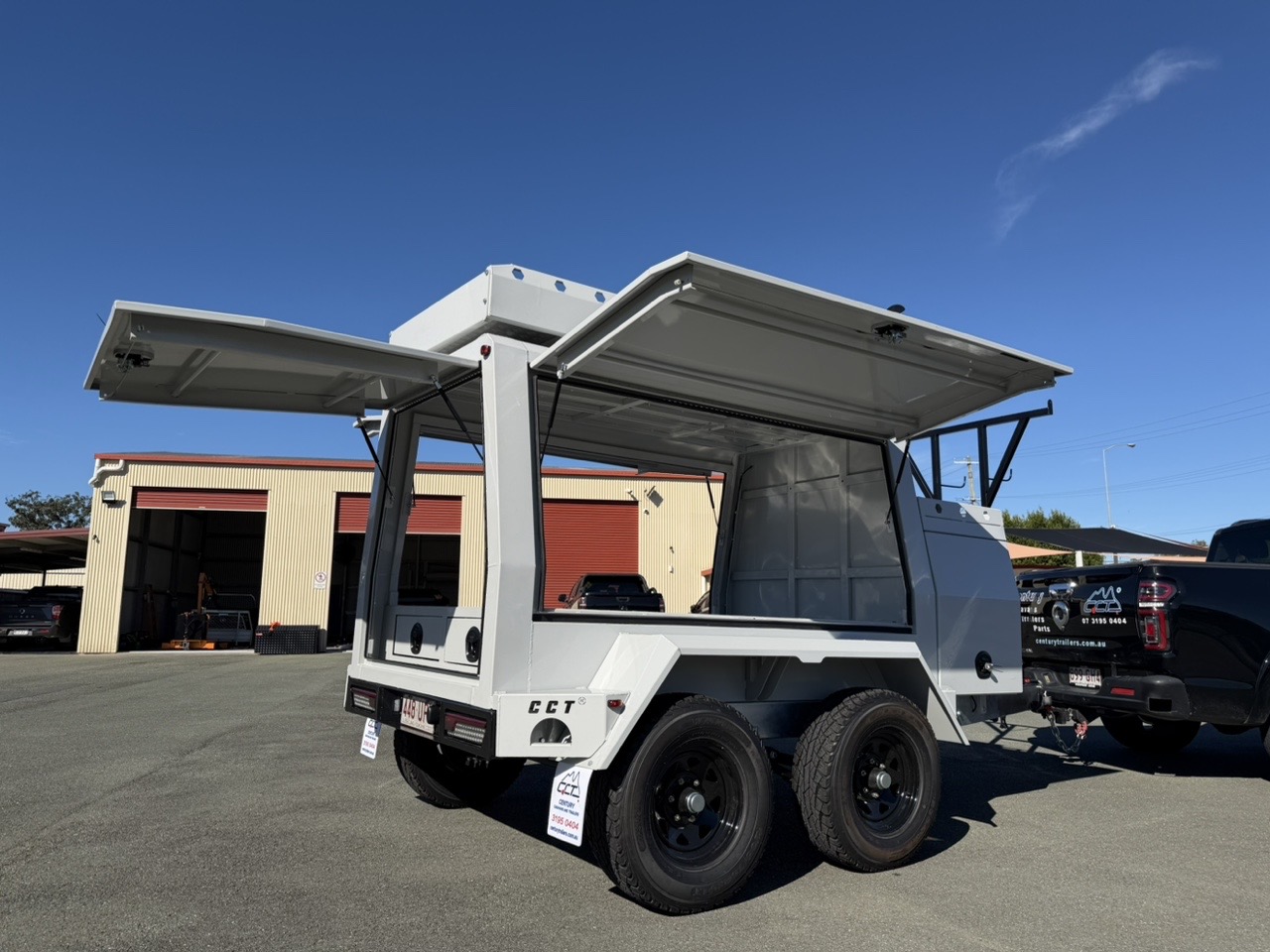

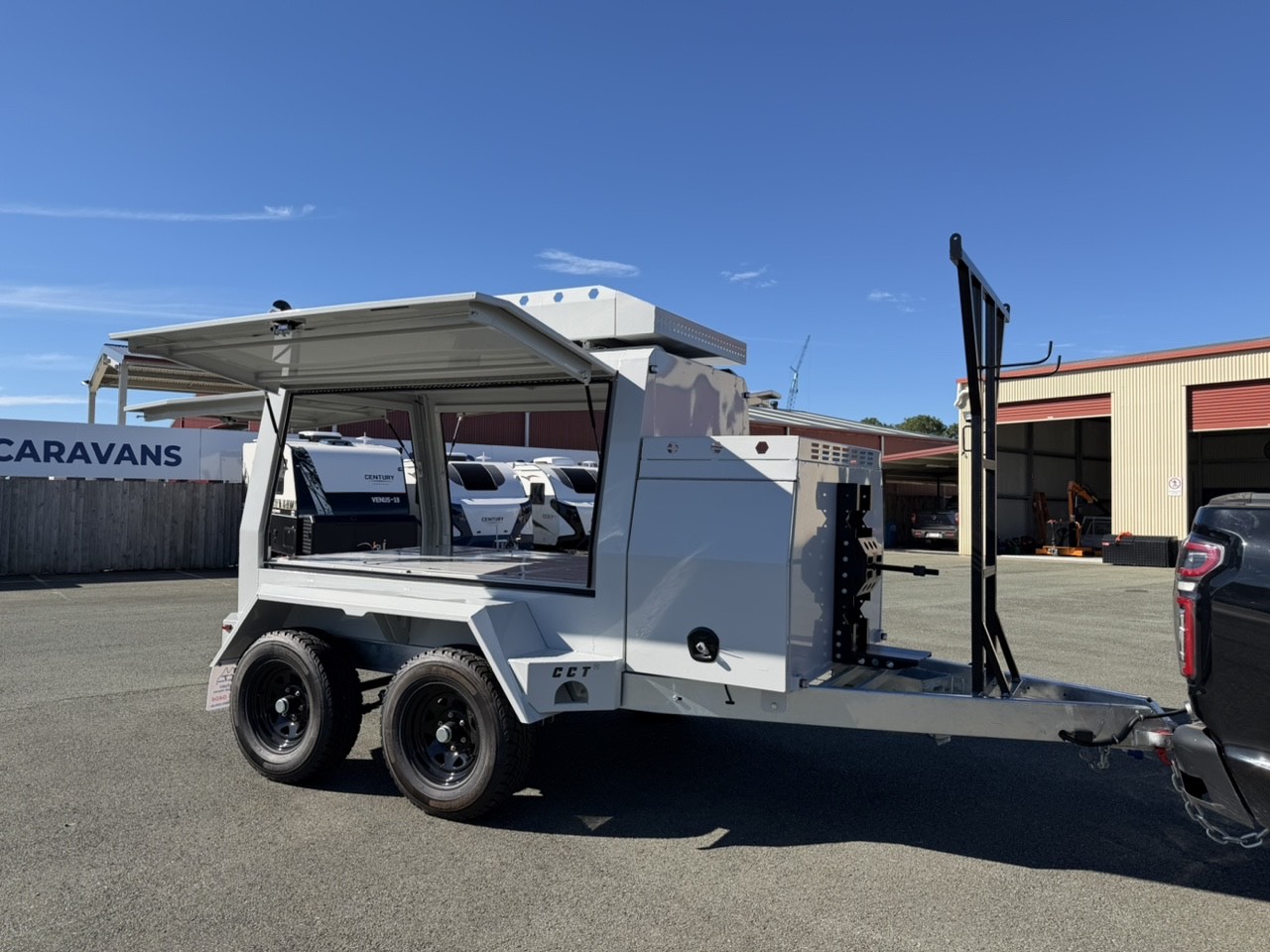

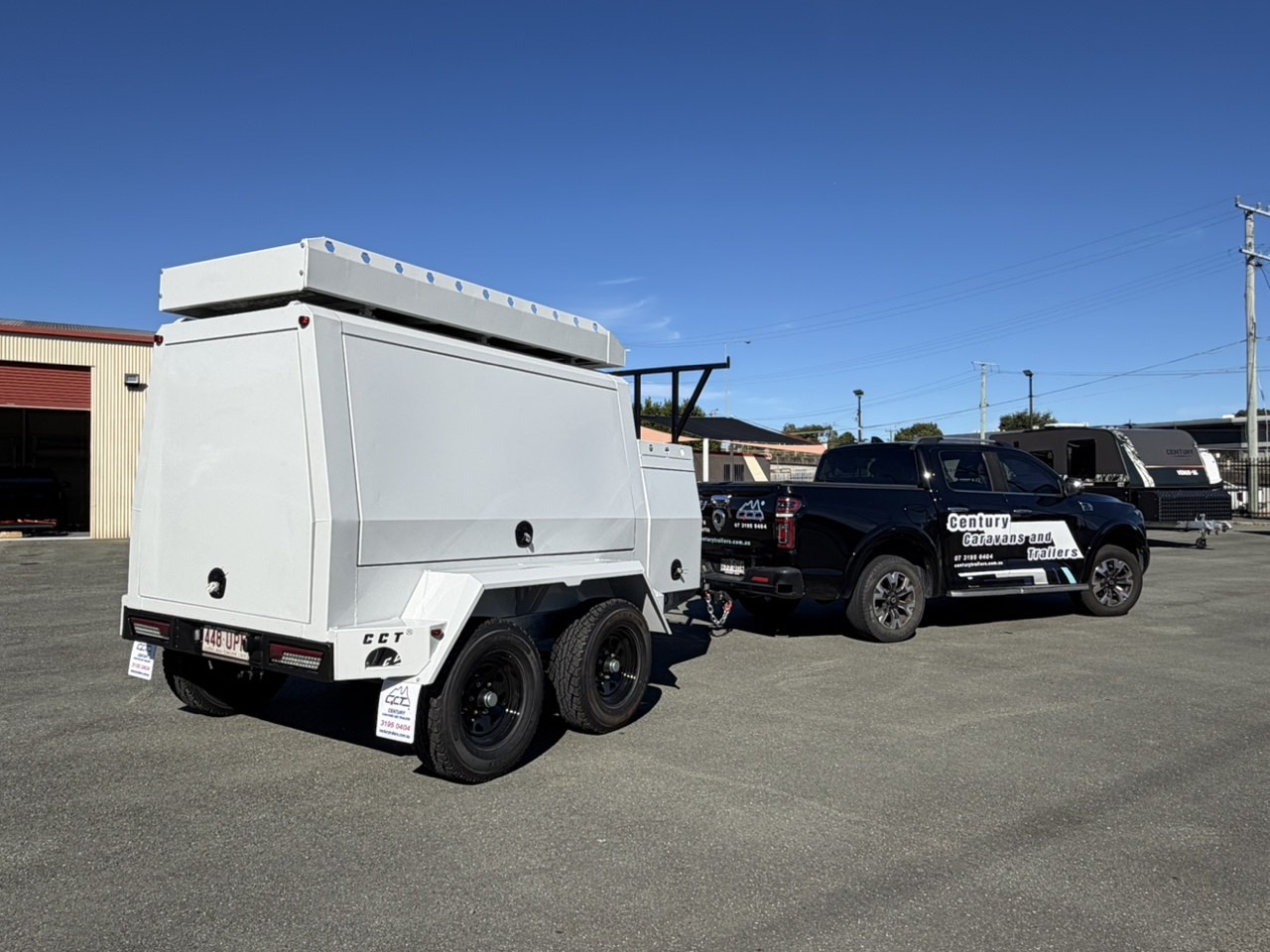

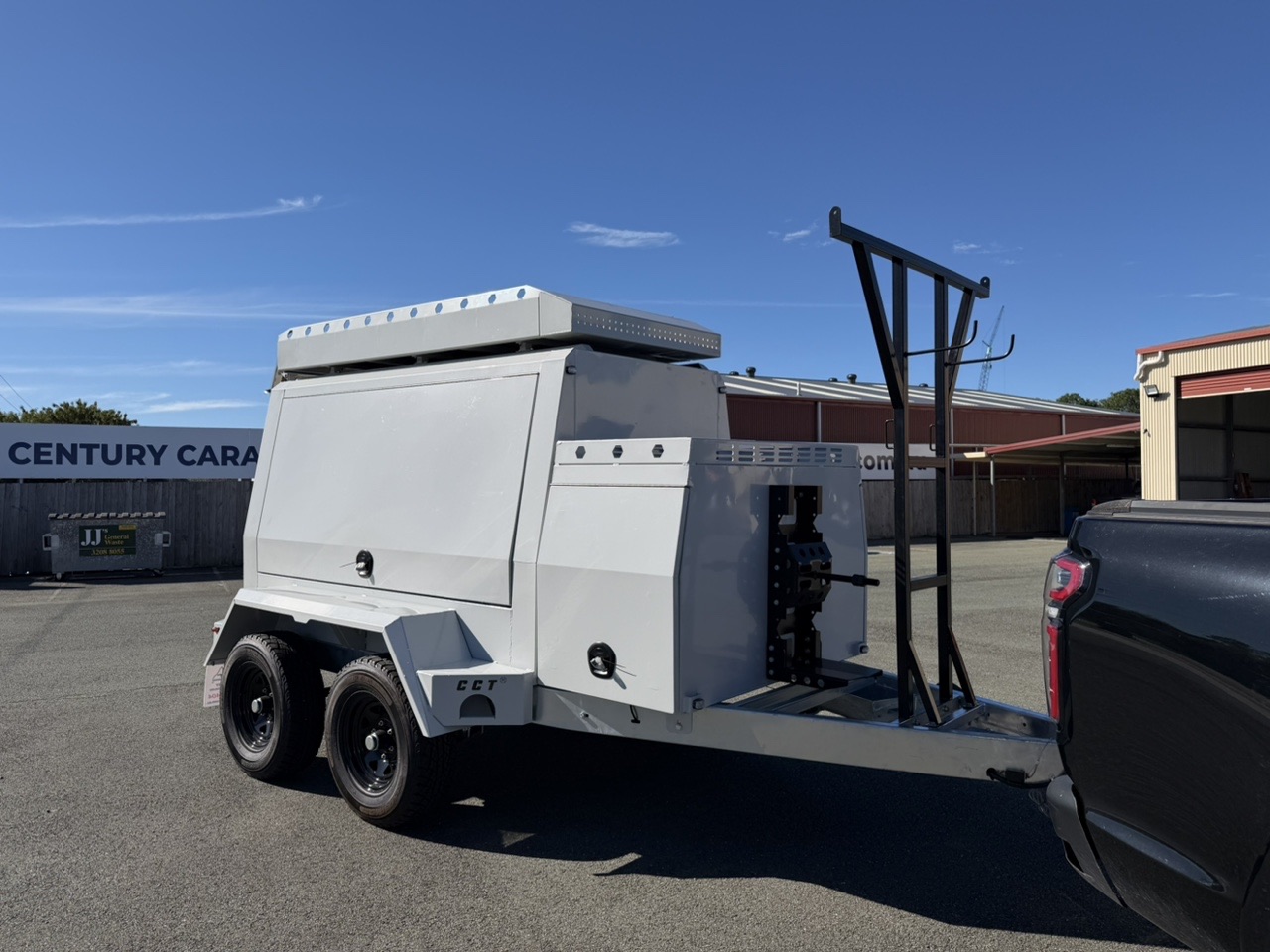

CCT Vanguard 8×5 Tradesman Trailer
Heavy-Duty 3500KG ATM Tradesman Trailer with Fully Hot-Dip Galvanised
Chassis & Full Aluminium Canopy
Introducing the all-new CCT Vanguard Series — a next-generation 3500KG ATM heavy-duty tradesman trailer engineered for Australian professionals who demand superior durability, lightweight construction, and fully customisable mobile workspace solutions.
Purpose-built for commercial, construction, mining, and fleet applications, the Vanguard Series combines a fully welded and fully hot-dip galvanised heavy-duty chassis with premium full aluminium canopy construction to deliver exceptional strength, corrosion resistance, and long-term reliability in harsh Australian conditions.
The Vanguard Series is more than just a trailer — it is a professional-grade mobile workshop platform designed for serious work.
Key Features
Heavy-Duty 3500KG ATM Platform
The Vanguard Series is built on a true commercial-grade heavy-duty platform with a 3500KG ATM rating as standard, providing excellent payload capacity and towing performance for professional applications.
For customers requiring additional carrying capacity, the chassis platform can also be upgraded to 4500KG ATM specification.
Fully Welded & Fully Hot-Dip Galvanised Chassis
Unlike many conventional trailers that galvanise individual components before assembly, the Vanguard chassis is fully welded first and then completely hot-dip galvanised as one complete structure.
This process provides superior corrosion protection both inside and outside the chassis, significantly improving long-term durability and structural lifespan.
One-Piece 150mm Rolled Main Rails
The Vanguard Series features integrated one-piece 150mm Q345 high-strength rolled main chassis rails engineered for maximum strength and rigidity.
The drawbar and chassis are designed as a continuous heavy-duty structure, eliminating the need for additional welded reinforcement RHS sections commonly seen on standard trailers.
Premium Full Aluminium Canopy Construction
The upper canopy body is fully fabricated from premium 5052 marine-grade aluminium, delivering the ideal balance of lightweight performance, structural strength, and corrosion resistance.
The fully welded aluminium construction reduces overall trailer weight while maintaining exceptional durability for demanding commercial environments.
Powder-Coated Finish with Custom Colour Options
All canopy panels receive a premium powder-coated finish for enhanced durability and professional appearance.
Custom colour options are available to match fleet branding or individual preferences.
Custom Aluminium Internal Storage Systems
Internal shelving and storage systems are fabricated from aluminium and can be fully customised to suit individual trade requirements, including:
- Tool storage systems
- Parts organisation
- Electrical fit-outs
- Service equipment layouts
- Mobile workshop configurations
Built for Commercial & Fleet Applications
Engineered for:
- Tradesmen
- Contractors
- Mining applications
- Civil construction
- Mobile service teams
- Fleet operators
- Off-road commercial use
The Vanguard Series is designed to handle Australian highways, construction sites, and demanding remote work environments with confidence.
Optional Upgrades & Accessories
Customise your Vanguard Trailer with a wide range of optional upgrades and accessories:
- Long Rear Trundle Drawers
- Water Tank & Water Pump Systems
- Electrical & Solar Packages
- Battery Management Systems
- Inverter & Charging Systems
- Roof Rack Systems
- Ladder Racks
- LED Work Lights
- Spare Wheel Carriers
- Custom Fleet Fit-Outs
- Custom Internal Storage Layouts
- Custom Powder-Coated Colours
Technical Specifications
| Feature | Specification |
|---|---|
| Trailer Size | 8×5 Tradesman Trailer |
| Series | CCT Vanguard Series |
| ATM Rating | 3500KG Standard |
| ATM Upgrade Option | Upgrade Available to 4500KG ATM |
| Chassis Construction | Fully welded chassis with complete hot-dip galvanised finish |
| Main Chassis Rails | One-piece 150mm rolled main rails |
| Drawbar Design | Integrated heavy-duty drawbar structure |
| Canopy Material | Fully welded 5052 marine-grade aluminium |
| Finish | Premium powder-coated finish |
| Colour Options | Custom colours available |
| Suspension | Heavy-duty tandem axle suspension |
| Wheels & Tyres | Heavy-duty off-road wheel & tyre package |
| Door Configuration | Gullwing canopy doors with gas struts |
| Internal Fit-Out | Fully customisable aluminium shelving systems |
| Electrical Options | Electrical & solar packages available |
| Water System Options | Water tank & pump systems available |
| Storage Options | Rear trundle drawers & custom storage solutions |
| Intended Use | Commercial, mining, fleet & heavy-duty trades applications |
Built for Serious Work
The CCT Vanguard 3500KG ATM Tradesman Trailer represents the next generation of Australian commercial trailers — combining advanced chassis engineering, premium aluminium construction, and fully customisable workspace solutions into one professional-grade heavy-duty platform.
Whether you are operating on construction sites, remote mining projects, or daily commercial service work, the Vanguard Series is engineered to deliver exceptional durability, practical functionality, and professional presentation for years to come.
Why Choose CCT?
At CCT, we believe in simplicity and durability. Our products are designed right here in Queensland to meet the highest Australian standards. With a 12-month structural warranty and a reputation for reliability across Brisbane, Gold Coast, Caboolture, Toowoomba, and beyond, we provide the support you need to keep your business moving.
Ready to upgrade your fleet?
Visit us at our Rocklea showroom or browse our full range at CenturyTrailers.com.au.
