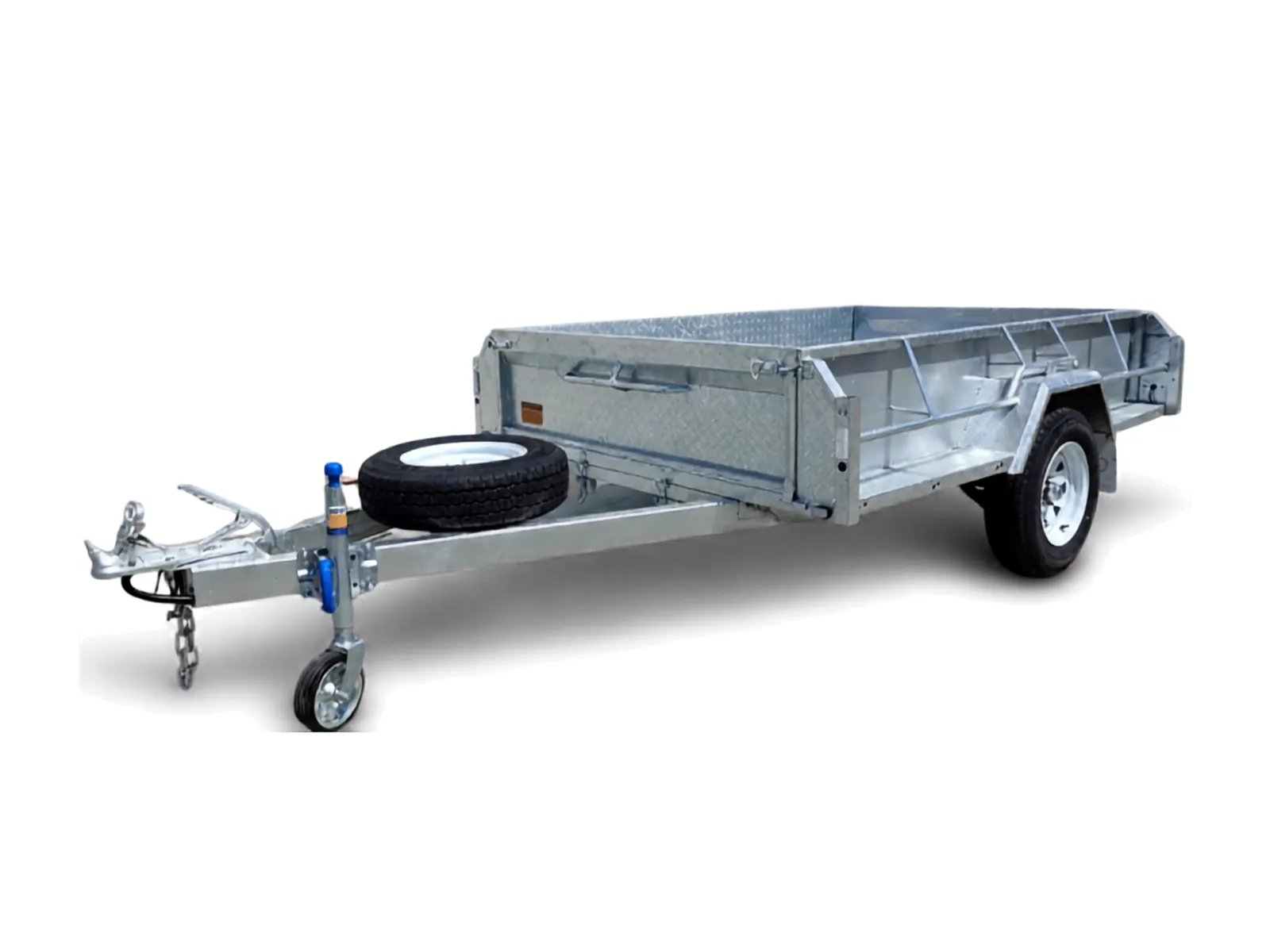

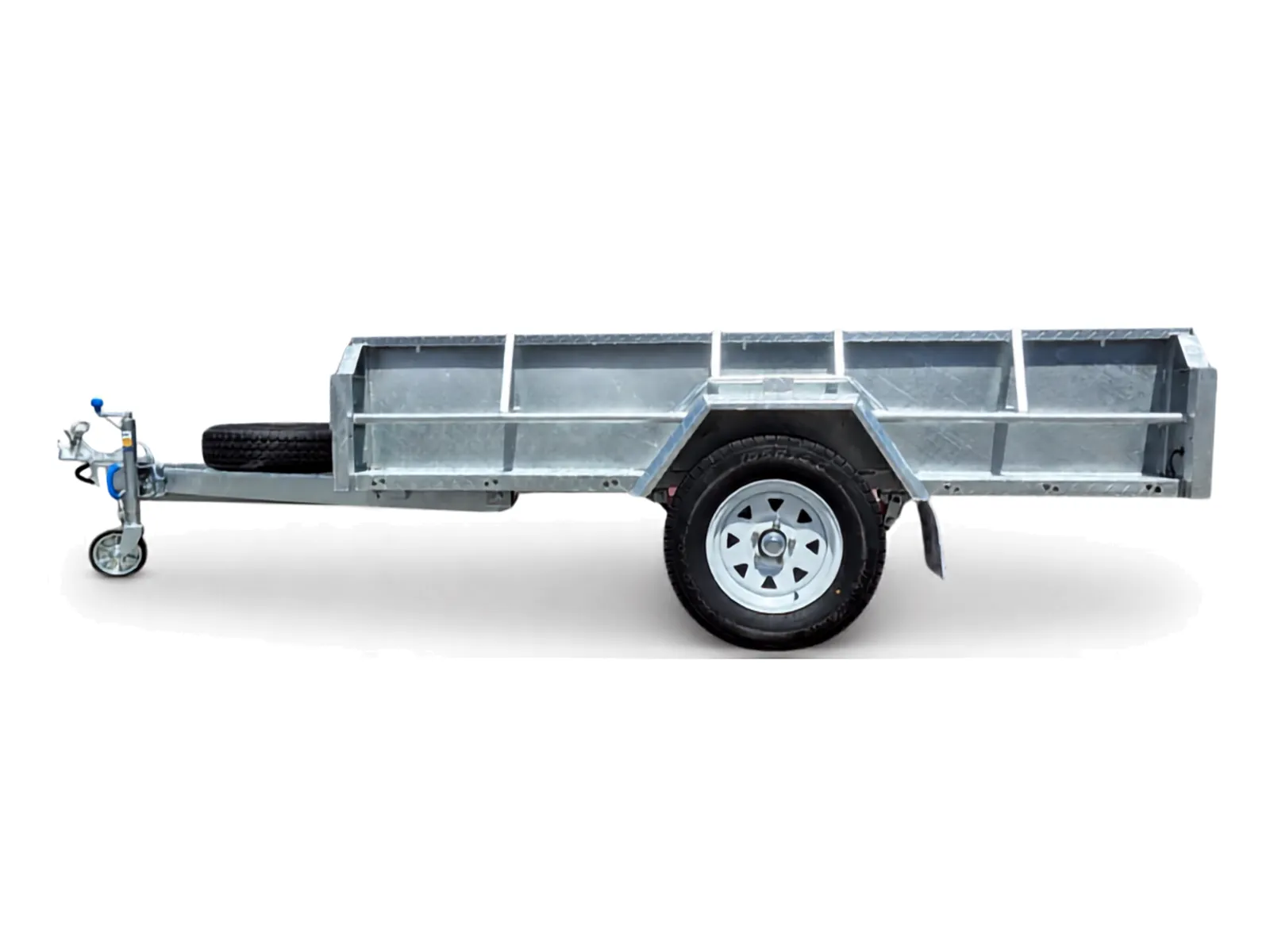

8×5 Premium HD Braked Box Trailer with 425mm High Sides – 1400kg ATM Galvanised
Upgraded 425mm deep corrugated solid steel sides providing approx. 40% more enclosed cargo volume
Heavy-duty 1400kg ATM single axle platform fitted with mechanical override disc brakes
Reinforced 100x50mm RHS extended drawbar and commercial 9-leaf eye-to-eye suspension
Fully welded hot-dip galvanised frame, full-length side steps, and swing-up jockey wheel
Product Description（长文案）
The CCT® 8×5 Premium HD Braked Box Trailer with 425mm High Sides delivers heavy 1400kg payload capacity combined with deep, solid-wall containment. Upgrading from standard 300mm sides to 425mm deep corrugated steel panels, this trailer keeps dense loose materials like topsoil, road base, and construction scrap contained without needing an overhead cage.
Key Features:
425mm Extra-Deep Solid Sides: Heavy-gauge ribbed steel panels increase total tray volume by roughly 40%, keeping dirt, mulch, and gravel from blowing or spilling out.
1400kg Braked Running Gear: Mechanical override brakes provide reliable braking performance without expensive in-car electronic controllers.
9-Leaf Heavy-Duty Spring System: Eye-to-eye leaf springs provide superior load absorption, preventing bed sagging when loaded with heavy aggregates.
100x50mm Structural Drawbar: Extended box tube drawbar improves trailer stability at speed and simplifies tight reversing.
Full-Length Side Steps: Tubular steps welded directly to the mudguards provide sturdy footholds when strapping down high-sided loads.

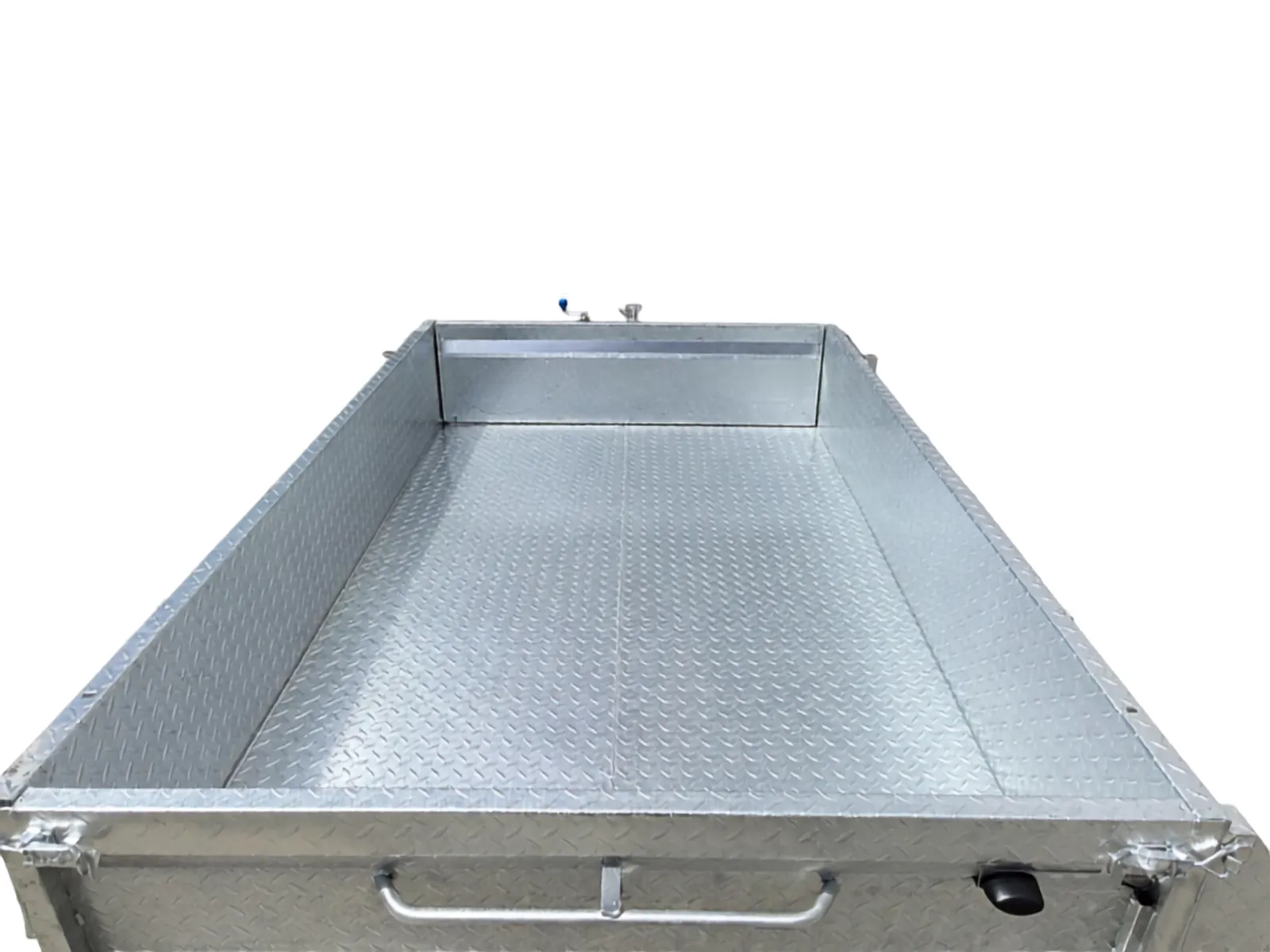

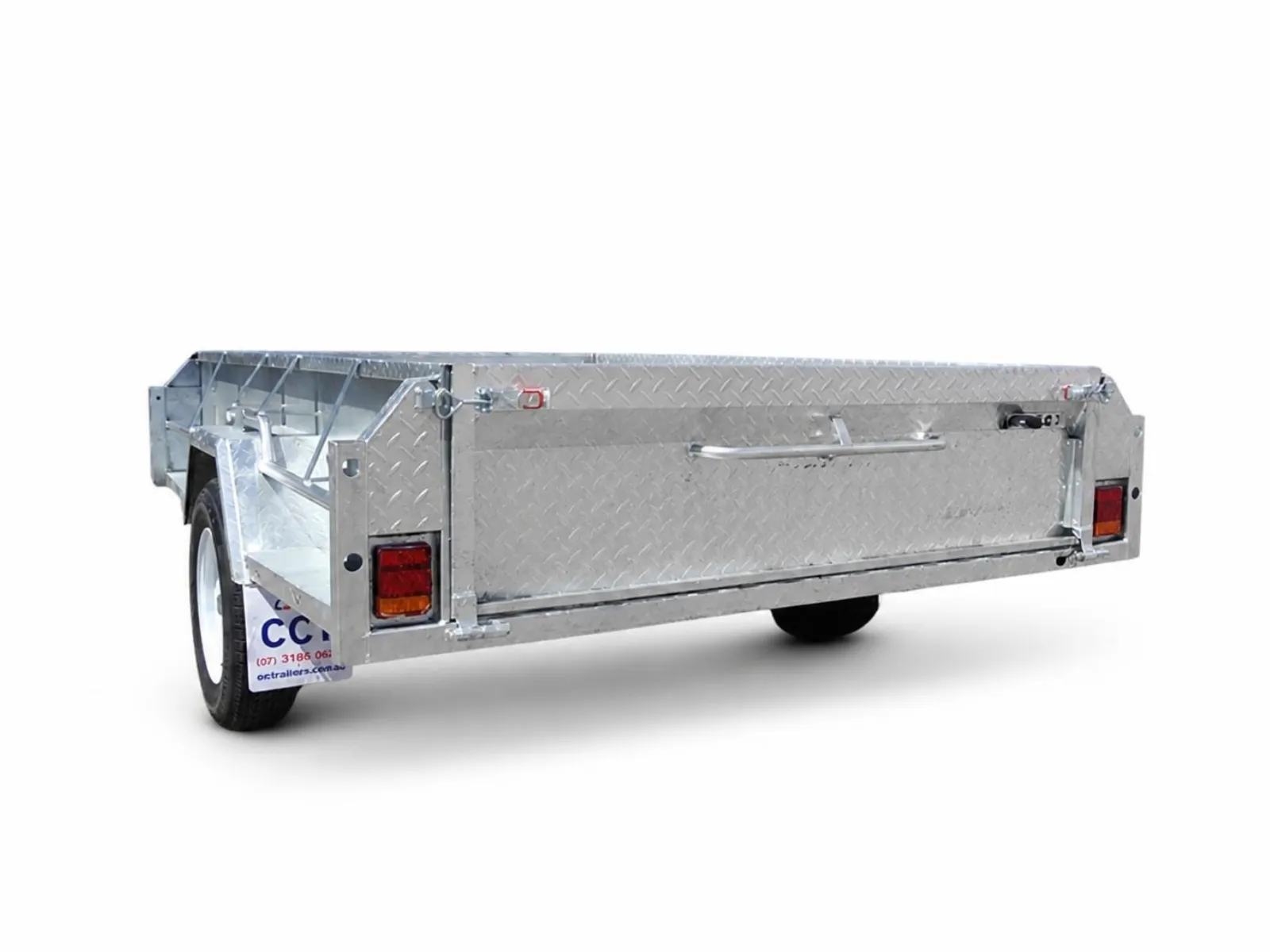

Checker Plate Floor & Drop Tailgates: Heavy non-slip bed with fold-flat, removable front and rear tailgates for carrying extended timber profiles.
Hot-Dip Galvanised Finish: Complete immersion treatment safeguards joints and high-stress points from corrosive soils and water runoff.
Applications: Bulk gravel and soil transport, firewood deliveries, landscaping maintenance, renovation rubbish removal, trade equipment hauling.
Why Choose CCT®?
Over 10 years of experience supplying trailers across Australia and New Zealand
24-month structural warranty on all galvanised trailers
Finance options available (subject to eligibility)
Local customer support with multiple Queensland showrooms
