2.0t – 3.0t Plant Trailer with Aluminium Ramps (2400 x 1235mm) | Century Trailers®
Engineered for 1.0t – 1.3t & Select 1.7t Mini Excavators
- Compact Powerhouse: 2400mm × 1235mm usable deck area – tailor-made for mini excavators, trench rollers, and compact machinery.
- Ultra-Light Loading: Heavy-duty 1500mm x 460mm aluminium ramps (2000kg load rating) included for effortless, single-person operation.
- Flexible Payload Options: Choose between Mechanical Disc Brake (2.0t ATM) or 10″ Electric Brakes with Parallel Bearings (3.0t ATM).
- Fast Local Pickup: Direct showroom collection from Brisbane, Gold Coast, Caboolture & Toowoomba.
Need a Larger Deck Size? View Our Heavy-Duty Range:

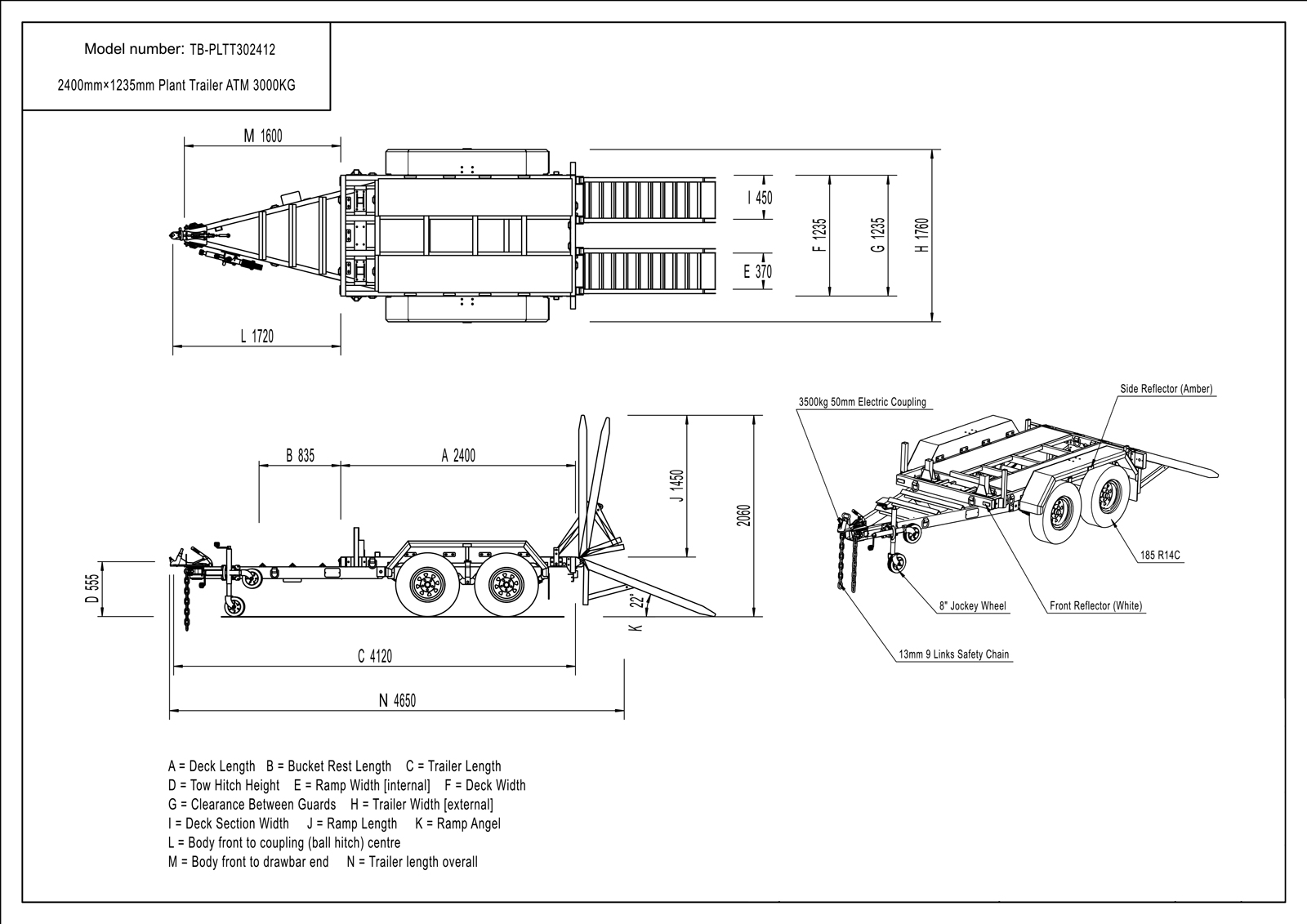

Technical Specifications & Key Features
- ATM Rating: 2000kg / 3000kg
- Usable Deck Space: 2400mm (L) x 1235mm (W)
- Tare Weight (at 3000kg ATM): 570kg
- Max Payload Capacity (at 3000kg ATM): 2430kg
- Chassis Finish: Fully welded, hot-dip galvanised steel chassis with checker plate flooring
- Drawbar Construction: Heavy-duty 120mm x 50mm x 4mm RHS
- Ramp Specifications: 1500mm (L) x 460mm (W) Ultra-Lightweight Aluminium Ramps (2000kg Rated Capacity)
- Suspension & Axles: Dual axle layout with heavy-duty Rocker-Roller spring suspension
- Brake System: Mechanical Disc Brakes (2.0t ATM) or 10-inch Electric Brakes with Parallel Bearings (3.0t ATM)
- Coupling & Safety: Hammerlock-connected safety chains for a secure towing connection
- Electrical & Lights: Full LED tail lights with standard 7-pin flat plug
- Included Standard Equipment: Heavy-duty swing-up jockey wheel & optional attachment mounting brackets
Recommended Applications
- 1.0t to 1.3t mini excavators, trenchers, compact skid steers, and 1930 scissor lifts
- Groundcare, earthmoving, and trenching equipment transportation
- Commercial landscapers, plumbers, and concreting contractors
- Plant hire fleets and civil construction site transfers
Why Choose Century Trailers (CCT®)
- Over 10 years of trusted industry experience across Australia & New Zealand
- 12-Month Structural Warranty on all galvanised trailers
- Fast, easy finance options available (subject to approval)
📞 Direct Sales Line: 07 3195 0404
📍 Brisbane HQ: 706 Beaudesert Road, Rocklea QLD 4106
📍 Gold Coast: Shed 2/328 Brisbane Rd, Arundel QLD 4214
📍 Toowoomba: 1/54 Carrington Road, Torrington QLD 4350
📍 Caboolture: 9B/27 Lear Jet Drive, Caboolture QLD 4510
*All specifications, dimensions, features, and images are provided for general reference purposes only. Product availability and minor design updates may vary by showroom location. Please confirm exact specifications with our team at the time of purchase.
Frequently Asked Questions (FAQ)
What is the difference between the 2.0t ATM and 3.0t ATM models?
The 2.0t ATM version utilizes a mechanical disc brake setup, making it ideal for lighter towing needs. The upgraded 3.0t ATM model features 10-inch electric brakes with parallel bearings on dual axles, boosting the legal payload capacity up to 2,430kg for heavier equipment.
Are the aluminium ramps heavy-duty enough for mini excavators?
Yes! The included 1500mm x 460mm aluminium loading ramps are specifically engineered for earthmoving machinery, featuring a combined 2,000kg load rating. They are ultra-lightweight for single-person handling while maintaining extreme structural durability.
Will my 1.7t mini excavator fit on this 1235mm wide deck?
This trailer fits most standard 1.0t to 1.3t excavators and select narrow-track 1.7t models (such as retract-track units). If your 1.7t excavator has wider or fixed tracks (over 1200mm width), we recommend checking our 2400 x 1535mm wider plant trailer model.
Do your plant trailers come with registration (Rego) and warranty?
All Century Trailers come with a 24-Month Structural Warranty. Onsite QLD registration can be arranged at the time of pickup for immediate drive-away convenience.
Can I pick up the trailer on the same day?
Yes, stock is available for immediate collection across our showrooms in Brisbane (Rocklea), Gold Coast (Arundel), Toowoomba, and Caboolture. Contact our team at 07 3195 0404 to reserve your unit prior to pickup.
