10×6 Hydraulic Tipper Box Trailer – 3200kg ATM | Q-Series

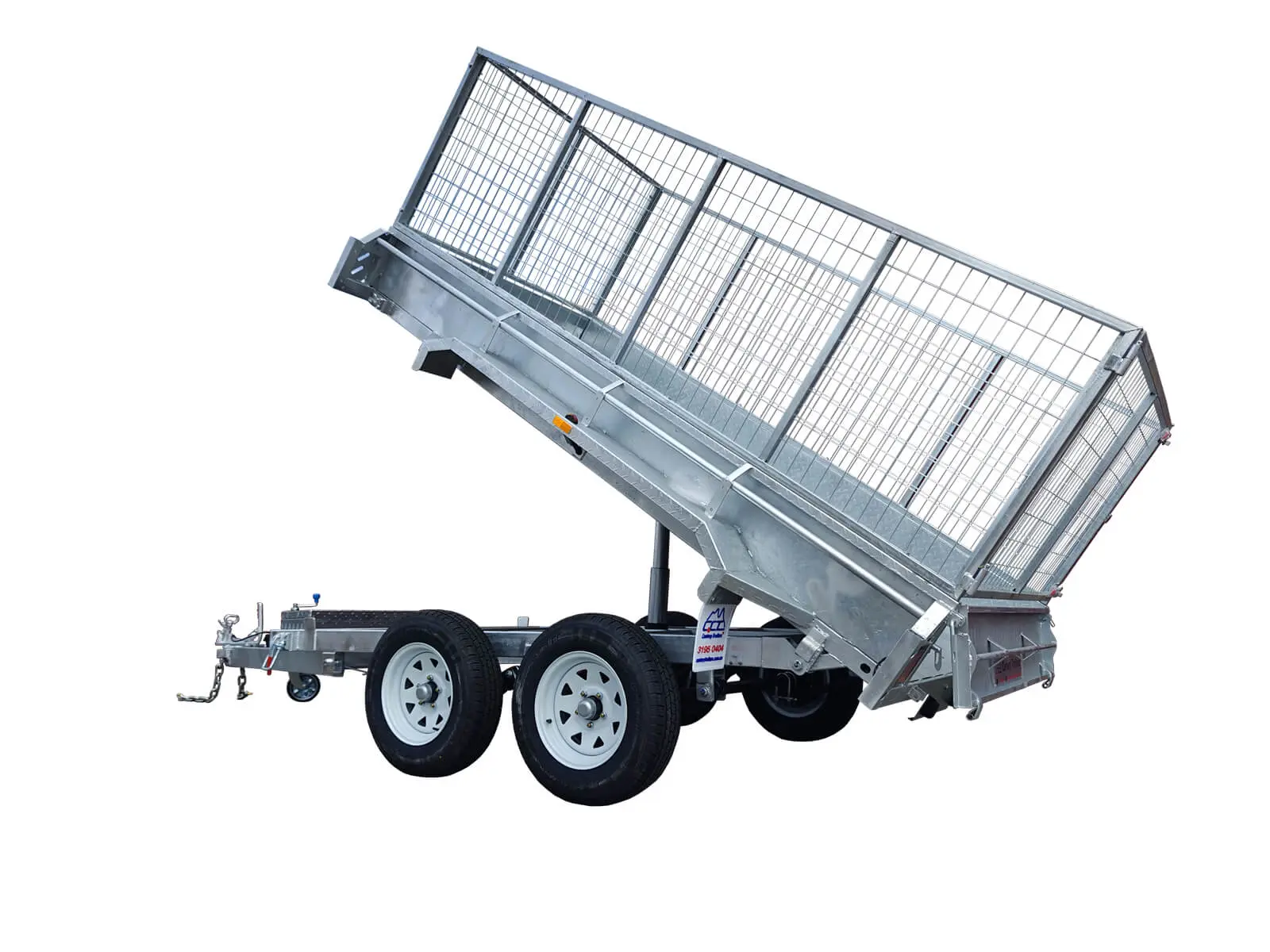

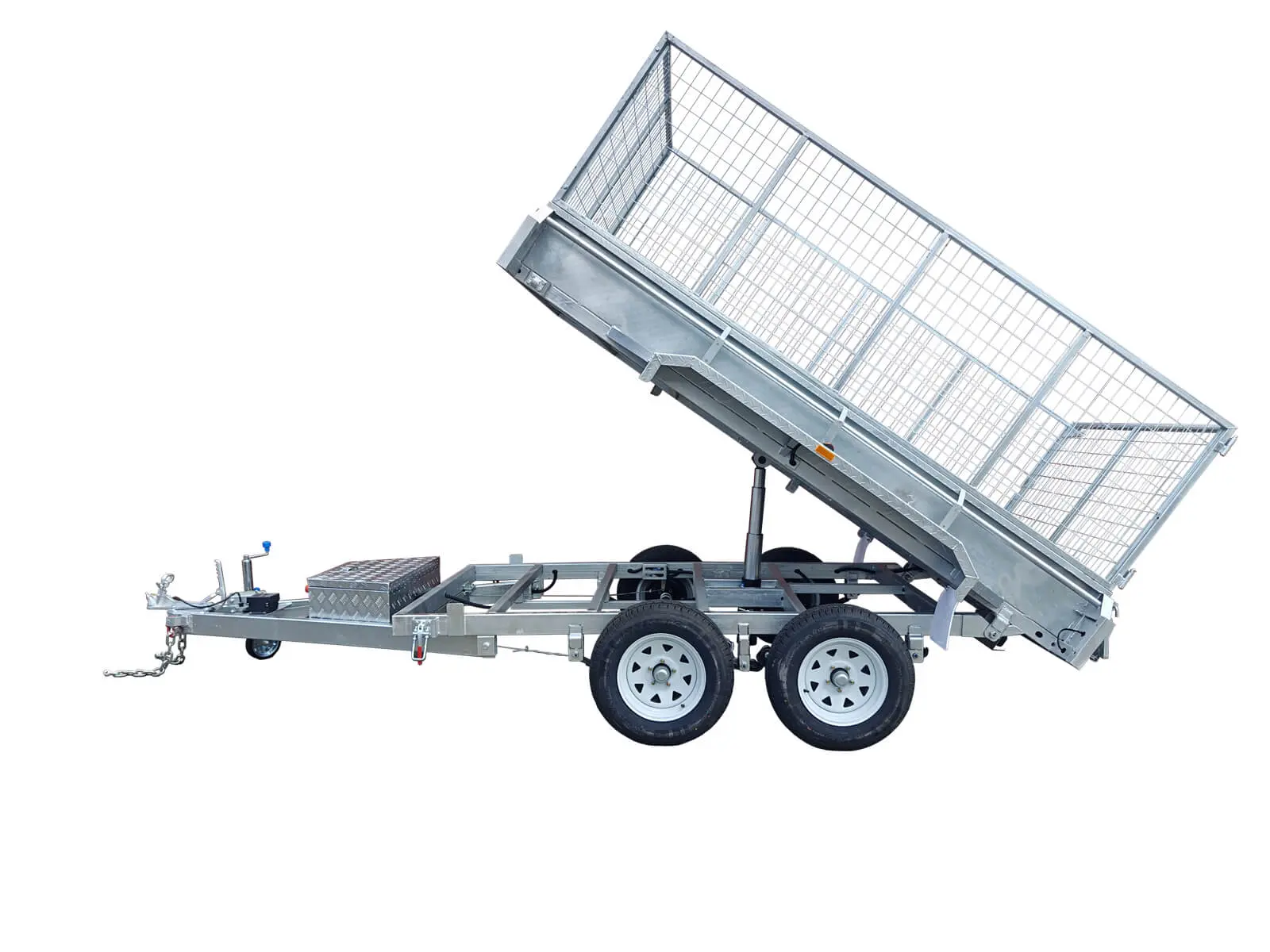

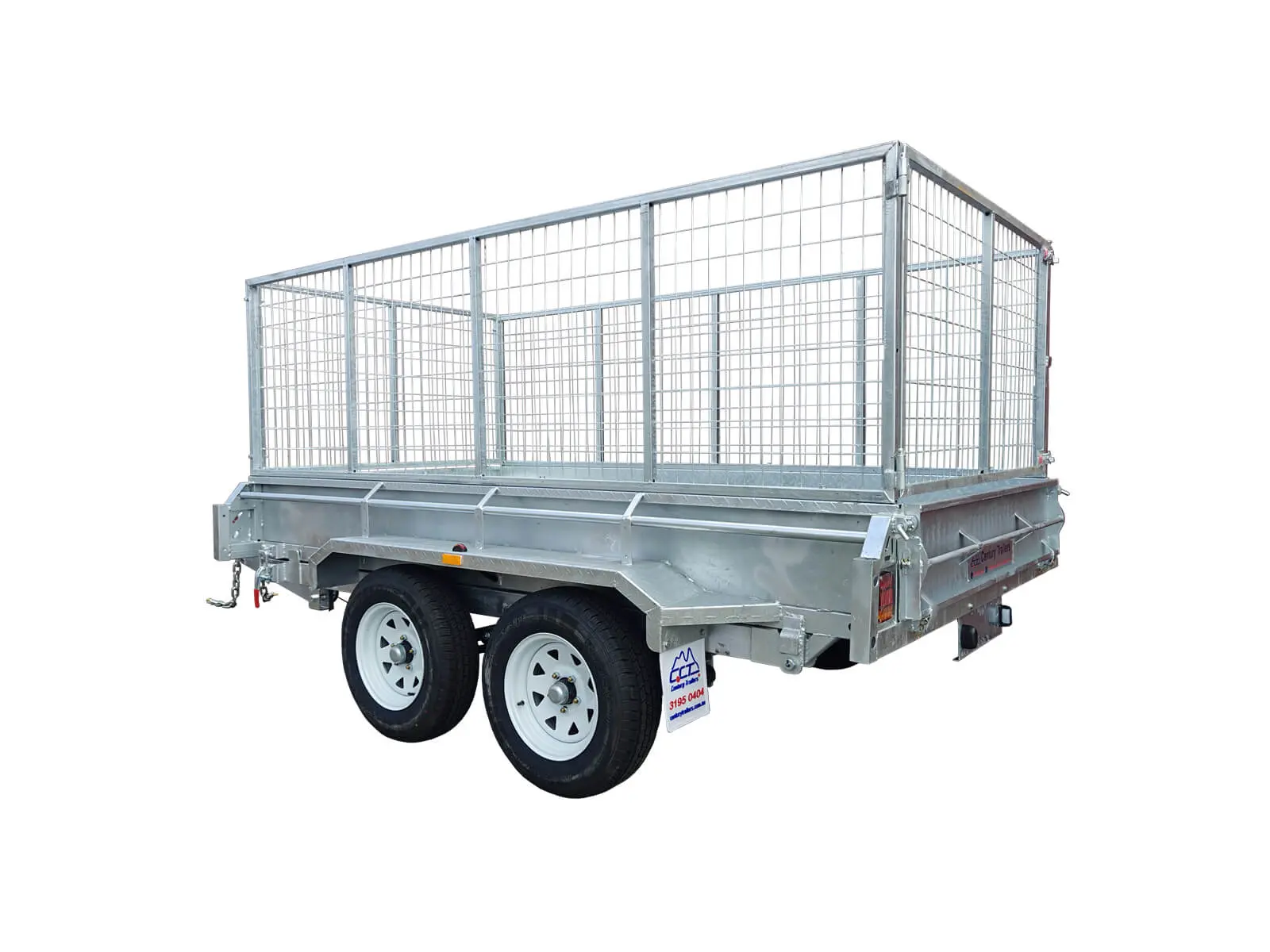

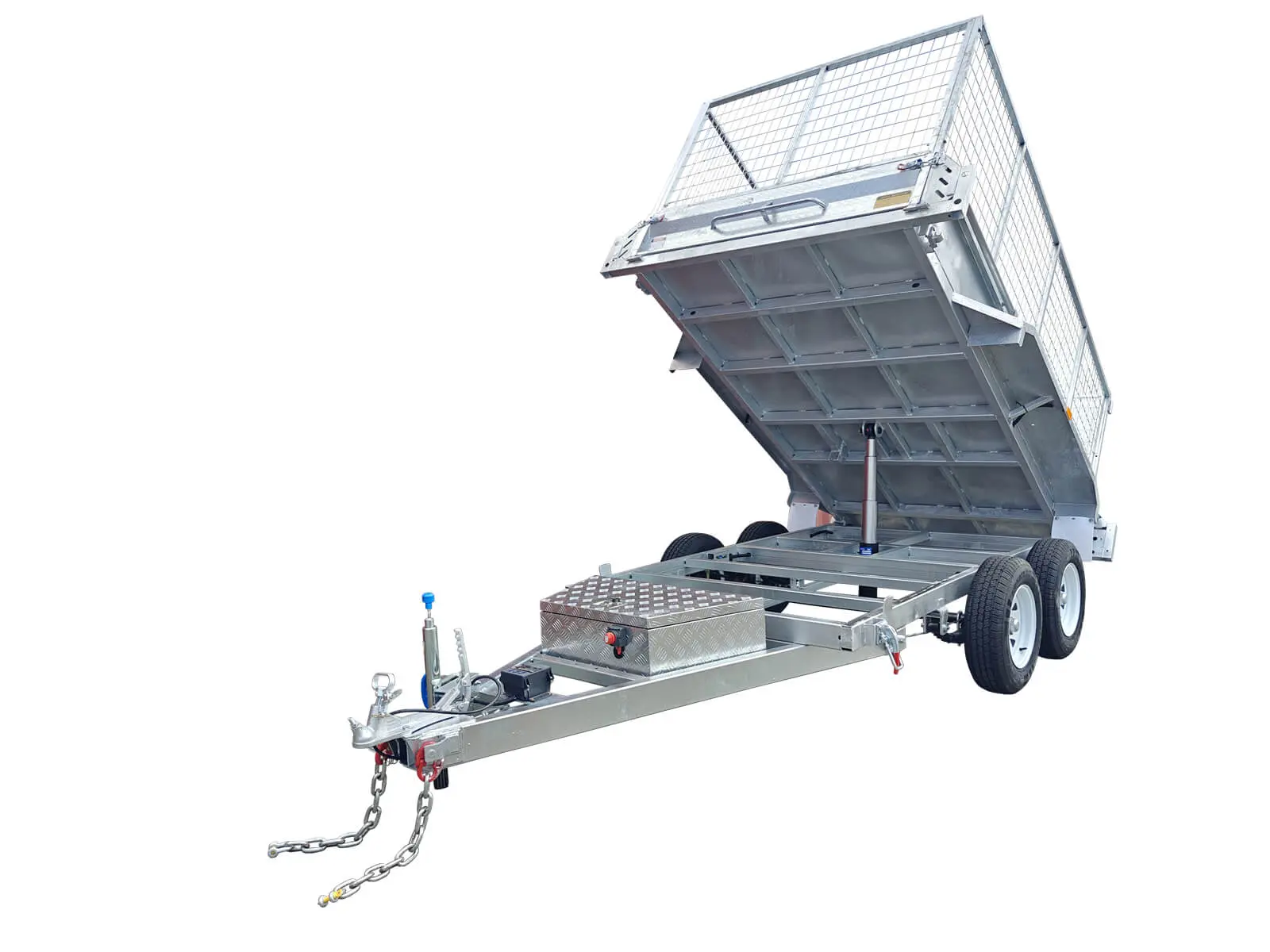

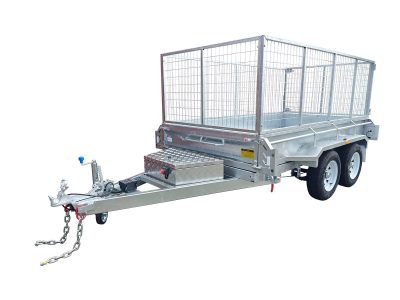

The Century Camper Trailers (CCT®) 10×6 Q-Series Hydraulic Tipper Trailer is an extra-wide, commercial-grade tandem workhorse designed for contractors, earthmovers, and landscapers who demand maximum volume and floor area. Combining an expansive 1.8-metre internal width with a robust 3200kg ATM rating and a 5-tonne 4-stage hydraulic ram, this trailer handles wide machinery, oversized bulk loads, and site waste with fast push-button tipping efficiency.
Comparing Capacity & Models?
Need Maximum 3.5T Legal Towing Capacity?
Upgrade to the full legal limit for standard 50mm ball couplings with the 10×6 Hydraulic Tipper Trailer 3500kg ATM (Q-Series) for increased payload margin.
Need a More Compact Deck Size?
Explore the standard-width 10×5 Hydraulic Tipper Trailer (Q-Series) or the nimble 8×5 Hydraulic Tipper Trailer (Q-Series).
Need Severe-Duty / 4.5T Chassis Strength?
Discover our reinforced extreme-duty machinery model in the 10×6 X-Series Hydraulic Tipper (3500kg/4500kg ATM).
Key Engineering & Operational Features
- Extra-Wide 1.8m Usable Bed: Broad internal deck width allows side-by-side loading of pallets, wide mini-excavator tracks, zero-turn mowers, and oversized building materials.
- 5-Tonne 4-Stage Hydraulic Ram: High-angle tilt cylinder ensures high-density, cohesive loads such as wet topsoil, road base, and demolition rubble dump cleanly without manual shovelling.

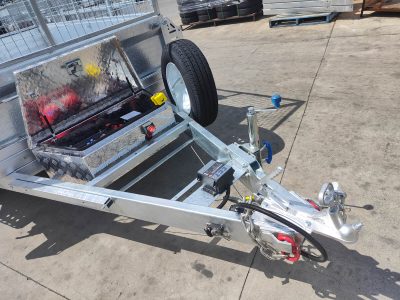

- Self-Contained 12V Power Unit: High-pressure hydraulic power unit enclosed in a weatherproof, lockable front steel toolbox; complete with deep-cycle battery and push-button hand pendant.
- Dual-Axle Parallel 10-Inch Electric Brakes: Delivers confident, balanced braking power under heavy dynamic loads, fully compliant with Australian ADR safety requirements.
- Heavy-Duty Tandem Suspension: Uprated multi-leaf spring assembly engineered to dampen shock loads and minimise body roll on uneven terrain and regional highways.
- Structural Hot-Dip Galvanised Chassis: Complete zinc immersion provides comprehensive internal and external protection against rust and abrasive job site moisture.
- Reinforced Checker Plate Floor: Durable steel bed supported by heavy underbody cross-members to withstand aggregate dumping and machinery track point-loading.
Technical Specifications
| Model / Series | 10×6 Hydraulic Tipper | Q-Series (TB-HYDTBTQ32106) |
| Aggregate Trailer Mass (ATM) | 3,200 kg |
| Internal Usable Dimensions | Approx. 3000 mm × 1800 mm (10ft × 6ft) |
| Hydraulic Lift System | 4-Stage Multi-Cylinder Ram, 5,000 kg Rated Lifting Capacity |
| Axles & Suspension | Tandem Axle, Parallel Heavy-Duty Leaf Spring Suspension |
| Braking System | Dual-Axle 10″ Electric Brakes with Emergency Breakaway System |
| Chassis & Body Finish | Fully Welded Structural RHS Steel, Hot-Dip Galvanised |
| Wheels & Tyres | 14″ Sunraysia Rims with Heavy-Duty Light Truck (LT) Tyres |
| Tailgate & Tie-Downs | Full Perimeter Tie-Down Rails & Removable/Drop-Down Tailgate |
| Jockey Wheel | Heavy-Duty Swing-Up Jockey Wheel Included |
Practical Trade & Rural Applications
- Extra-Wide Machinery Hauling: Accommodates commercial ride-on mowers, wide skid-steers, trenchers, and compact tractors with certified ramps.
- High-Volume Bulk Cartage: Maximises volumetric tipping capacity for mulch, turf, topsoil, river gravel, and road base.
- Demolition & Site Clearing: Superior tray volume functions as an agile mobile bin for construction waste, timber scraps, and plaster debris.
- Agricultural & Rural Properties: Effortless cartage of round hay bales, fencing components, animal feeds, and firewood.
Why Choose Century Camper Trailers®?
- 10+ Years of Manufacturing Heritage: Trusted by Australian commercial fleets, independent contractors, and civil trades.
- 24-Month Structural Warranty: Structural peace of mind supported directly through our regional Queensland showroom network.
- Same-Day QLD Registration: Drive away on the same day with on-site registration processing.
- Commercial Finance Solutions: Third-party finance options available to qualified business and individual buyers.
