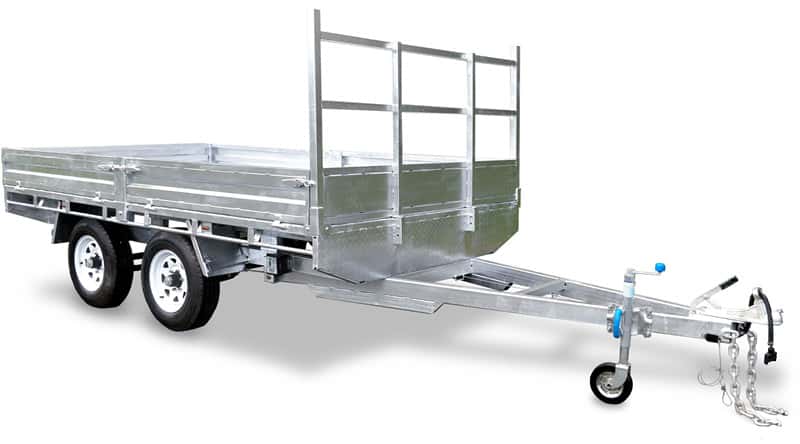

14×7 Flat Top Trailer (Flatdeck) – 3500kg ATM | X-Series
The Century Trailers (CCT®) 14×7 X-Series Flat Top Trailer delivers an expansive 14-foot deck length engineered on our flagship 4.5T-rated structural chassis platform. Designed for heavy construction logistics, equipment hire yards, and machinery operators carrying long structural products or dual-machine configurations, this tandem flatbed features an extended 150×50×1800mm RHS drawbar, Dexter 12-inch electric brakes, and removable gates for 3-way forklift access.
Comparing Capacity & Series?
Looking for Different Deck Lengths?
Compare with the 12×7 X-Series 3500kg Flat Top or our flagship 16×8 X-Series 3500kg Flat Top.
Need Full 4.5T Heavy Machinery Capacity?
Upgrade to the certified 4.5T ATM package with 70mm tow coupling on our 14×7 X-Series Flat Top (4500kg ATM).
Key Engineering & Operational Features
- Expansive 14ft × 7ft Cargo Deck: Massive loading platform capable of transporting multiple long items, multiple pallets, or large equipment without overhang.
- 4.5T-Rated Structural Chassis: Heavy-gauge RHS frame engineered to withstand aggressive dynamic loads and high torsional stress.

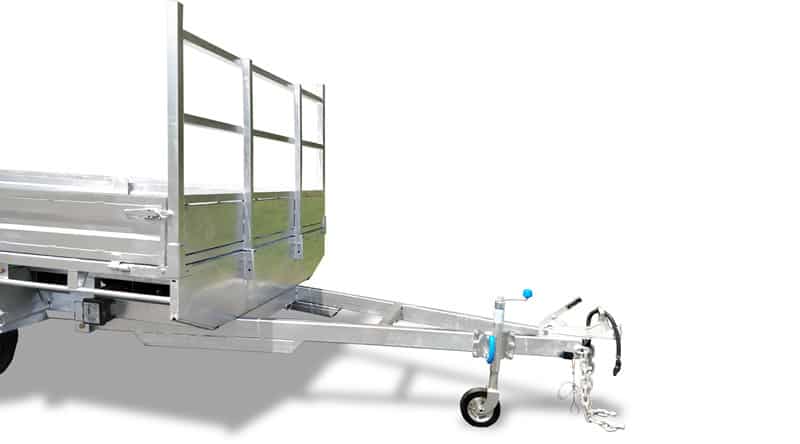

- Reinforced 150×50×1800mm RHS Drawbar: Extended heavy-duty drawbar profile engineered for superior towing stability and anti-sway tracking.
- Dexter 12-Inch Electric Brakes: Dual commercial-grade Dexter 12″ electric brake axles with ADR-compliant emergency breakaway system.
- 3-Way Forklift Access: Drop-down removable front, rear, and side gates convert the deck into a flatbed within moments.
- Hot-Dip Galvanised Finish: Comprehensive immersion galvanising delivers total rust defense inside and outside all tubular sections.
- Reinforced Checker Plate Floor: Durable non-slip steel floor reinforced with structural cross-members.
Technical Specifications
| Model / Series | 14×7 Flat Top Trailer | X-Series (TB-FTTX35147) |
| Aggregate Trailer Mass (ATM) | 3,500 kg (Upgradeable to 4,500 kg ATM) |
| Drawbar Construction | 150mm × 50mm × 1800mm Heavy-Duty RHS Extended Drawbar |
| Deck Dimensions | 14ft × 7ft (Approx. 4,200mm × 2,100mm Heavy-Duty Flat Deck) |

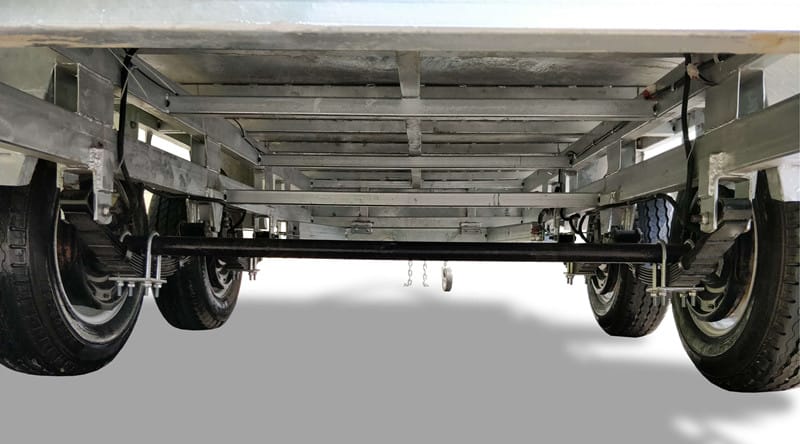

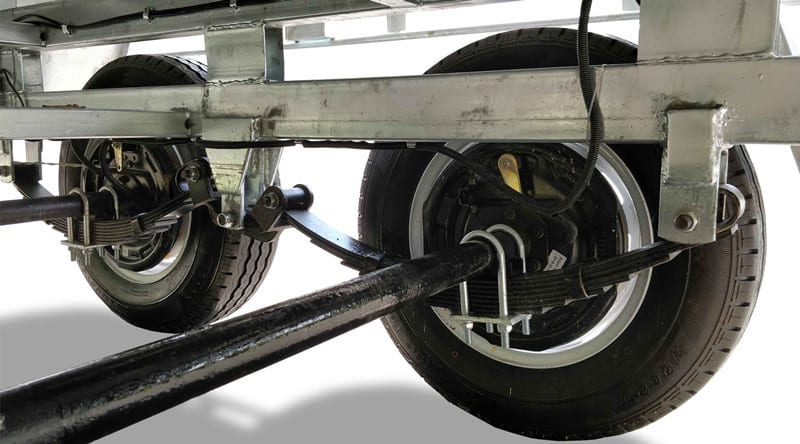

| Axles & Suspension | Tandem 50mm Solid Square Axles with Rocker-Roller Spring Suspension |
| Braking System | Dual-Axle Dexter 12″ Electric Brakes with Emergency Breakaway System |
| Chassis Design | Flagship 4.5T Structural Platform, Fully Hot-Dip Galvanised |
| Flooring & Side Gates | Heavy-Duty Checker Plate Floor with Drop-Down & Removable Sides |
| Wheels & Tyres | Heavy-Duty Sunraysia Rims with Commercial Light Truck Tyres |
| Tie-Down Provisions | Continuous Heavy-Duty Full-Length Perimeter Tie-Down Rails |
| Jockey Wheel | Heavy-Duty Swing-Up Commercial Jockey Wheel Included |
Practical Trade & Rural Applications
- Oversized Material Haulage: Transporting long structural steel beams, roof trusses, frames, and commercial timber packs.
- Civil Plant & Mini Excavators: Hauling machinery and attachments with certified heavy-duty aluminium loading ramps.
- High-Capacity Pallet Distribution: Multi-pallet freight transport with unrestricted 3-way forklift access.
- Agricultural & Fencing Supplies: Extended capacity for long fence posts, irrigation pipes, and bulk farm maintenance cargo.
Why Choose Century Trailers®?
- 10+ Years of Manufacturing Heritage: Trusted by tens of thousands of Australian trades, councils, and contractors.
- 12-Month Structural Warranty: Nationwide structural peace of mind backed directly by our Queensland branch network.
- Drive-Away Registration Available: On-site QLD vehicle registration can be completed on pickup.
- Flexible Financing: Third-party trade finance and payment plan solutions available to approved customers.
