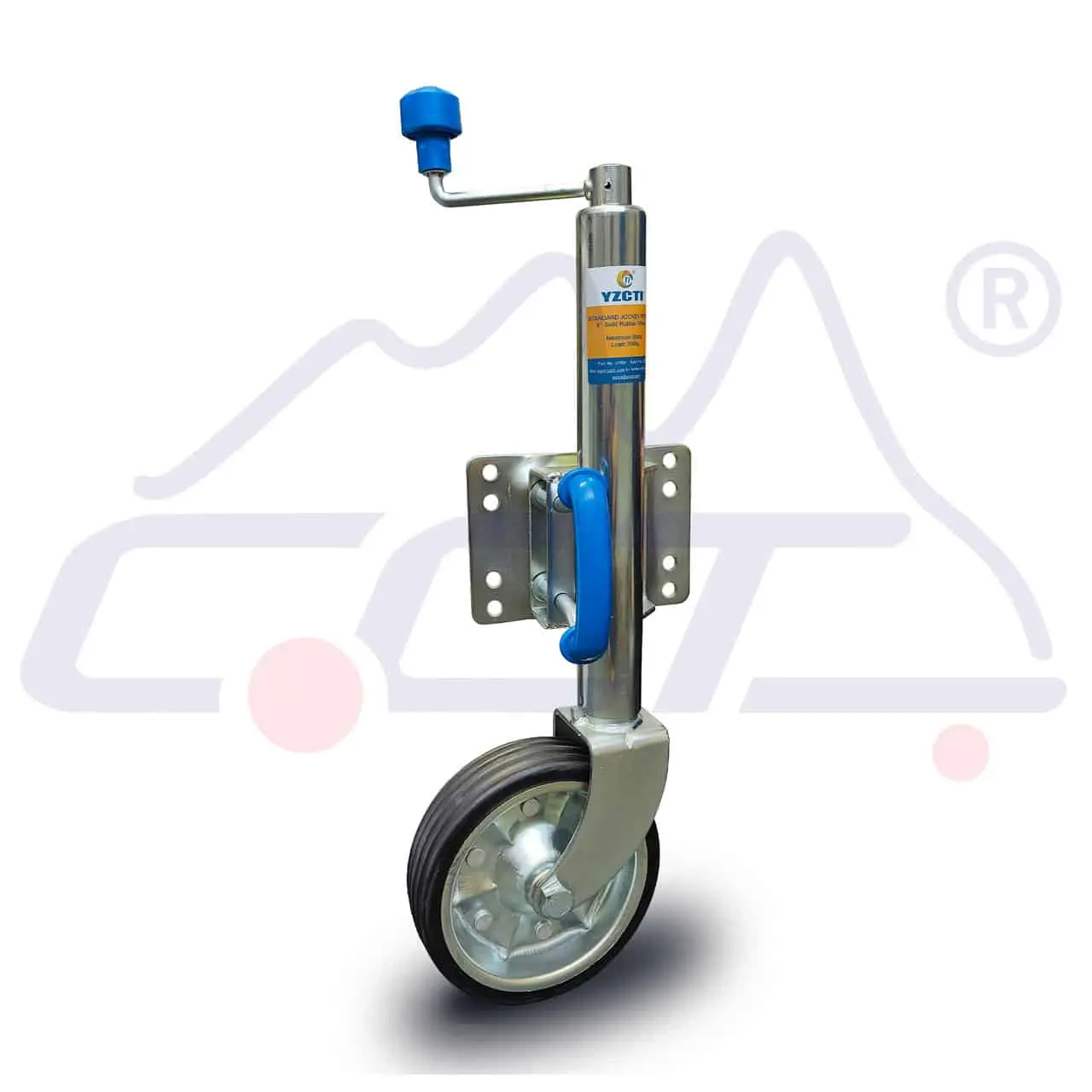

8 Inch Trailer Jockey Wheel Standard U bolt Style Zinc Solid Rubber
- Surface finish: Zinc Plated
- Static Capacity: 350kg
- Outer Tube Dia.: 50mm
- Weight: 7.8kg
- Wheel Dia.: 200mm

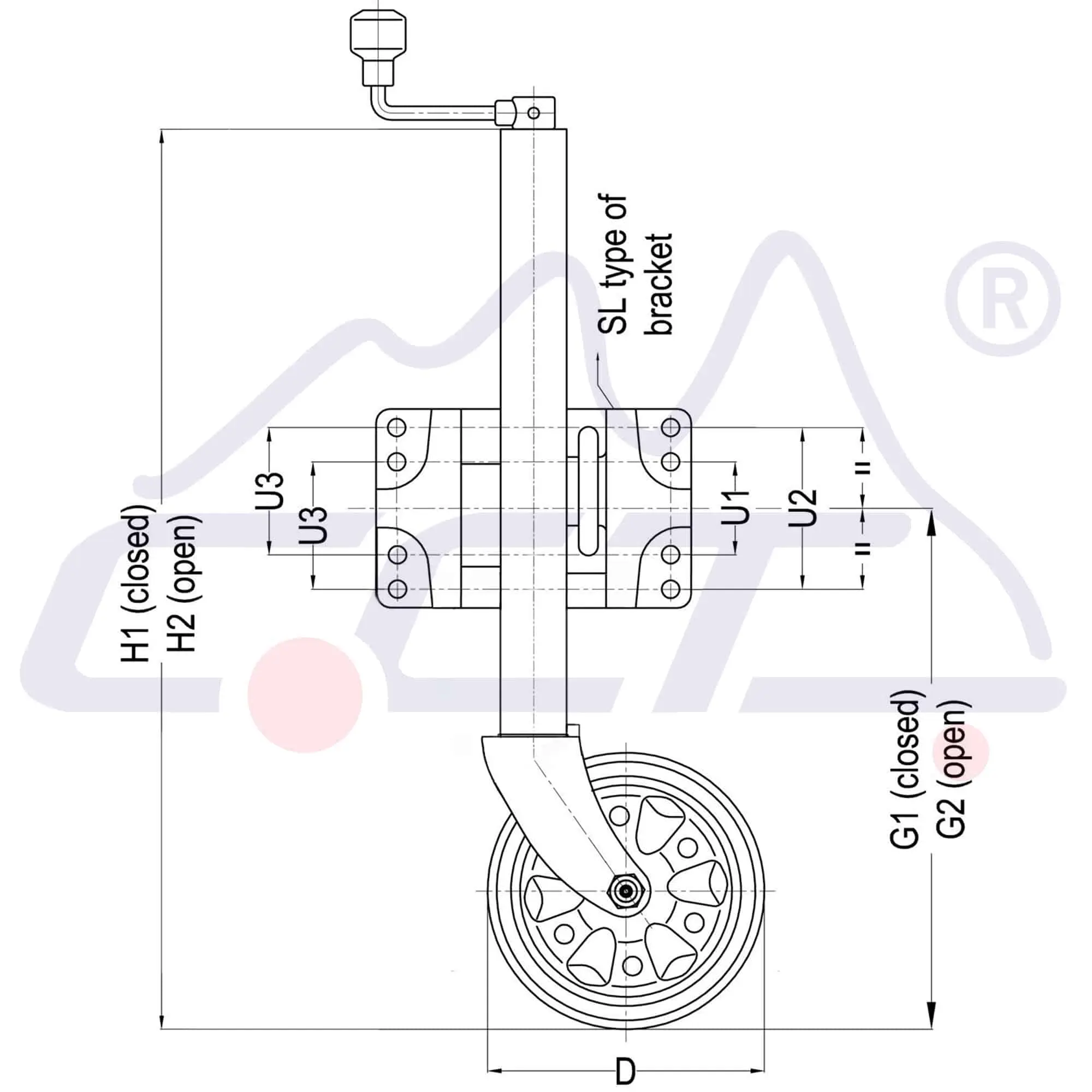

- U1: 65mm
- U2: 114mm
- U3: 90mm
- Height Closed (H1):590mm
- Height Open (H2):830mm
- Bottom of wheel to mounting plate center when closed (G1): 350mm
- Bottom of wheel to mounting plate center when open (G2): 590mm
