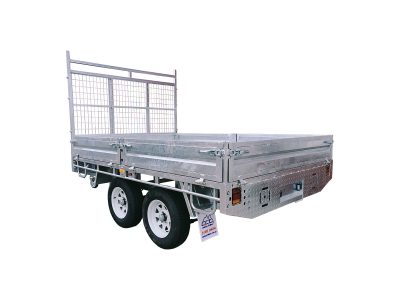

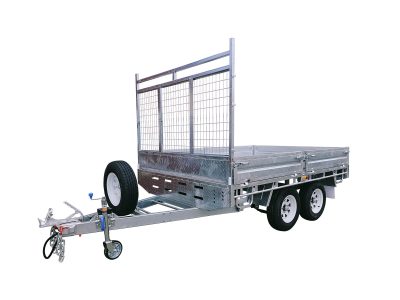

10×7 Flat Top Trailer (Flatdeck) – 3200kg ATM | Q-Series
The Century Trailers (CCT®) 10×7 Q-Series Flat Top Trailer offers an expanded 7-foot deck width, providing commercial trades and freight operators with the capacity to carry side-by-side standard Australian pallets. Engineered with a hot-dip galvanised tandem chassis and removable gates, this flatdeck delivers exceptional loading convenience from either side or the rear.
Comparing Capacity & Series?
Need Maximum 3.5T Legal Towing Capacity?
Upgrade to the maximum legal limit for standard 50mm ball hitches with our 10×7 Flat Top Trailer 3500kg ATM (Q-Series) for increased payload margin.
Need Different Deck Dimensions?

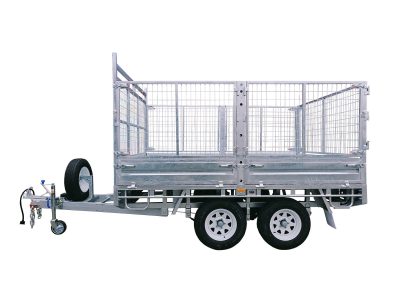

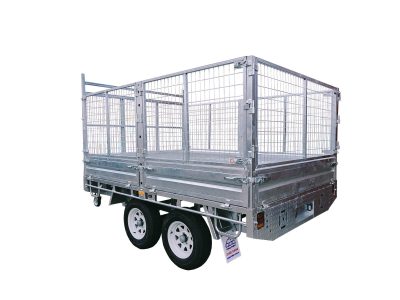

Compare with the compact 10×6 Flat Top Trailer 3200kg or step up in length to the 12×7 Flat Top Trailer 3200kg.
Need Severe-Duty / Machinery Hauling?
Discover our flagship 4.5T-rated chassis models in the 10×7 X-Series Flat Top (3500kg ATM) or 10×7 X-Series Flat Top (4500kg ATM).
Key Engineering & Operational Features
- Expanded 7-Foot Width: Wide deck profile specifically designed to accommodate standard pallets side by side or wide sheet materials.
- 3-Way Forklift Access: Drop-down removable front, back, and side gates allow fast, snag-free forklift loading and unloading.
- Fully Welded Hot-Dip Galvanised Body: Complete immersion galvanising provides comprehensive rust protection inside and outside tubular sections.
- Parallel 10-Inch Dual Axle Brakes: Dual electric brake axles with emergency breakaway safety system compliant with Australian ADR standards.
- Hammerlock Rated Safety Chains: Heavy-duty commercial-grade hitching security built for demanding transport conditions.
- Heavy-Duty Checker Plate Floor: Reinforced non-slip steel floor built to endure high point loads and heavy commercial freight.
Technical Specifications
| Model / Series | 10×7 Flat Top Trailer | Q-Series (TB-FTTQ32107) |
| Aggregate Trailer Mass (ATM) | 3,200 kg |
| Deck Dimensions | 10ft × 7ft (Approx. 3,000mm × 2,100mm Extra-Wide Flat Deck) |
| Axles & Suspension | Tandem Axle, Parallel Heavy-Duty Leaf Spring Suspension |
| Braking System | Dual-Axle 10″ Electric Brakes with Emergency Breakaway System |
| Chassis & Drawbar | Heavy-Duty RHS Steel, Fully Hot-Dip Galvanised |
| Flooring & Side Gates | Heavy-Duty Checker Plate Floor with Drop-Down & Removable Sides |
| Wheels & Tyres | 14″ Sunraysia-Style Rims with Light Truck Rated Tyres |
| Tie-Down Provisions | Full-Length Heavy-Duty Perimeter Tie-Down Rails |
| Jockey Wheel | Heavy-Duty Swing-Up Jockey Wheel Included |
Practical Trade & Rural Applications
- Pallet Freight & Distribution: Transporting Australian standard pallets side-by-side with efficient forklift loading.
- Wide Construction Materials: Carrying plasterboard sheets, wide timber packs, scaffolding, and steel mesh.

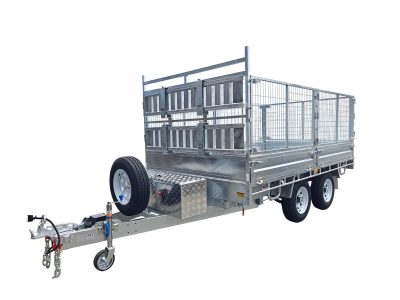

- Equipment & Site Plant: Hauling light machinery, site compressors, and tools with optional aluminium loading ramps.
- Rural & Agricultural Deliveries: Bulk bagging, farm gate supplies, irrigation components, and seasonal feed.
Why Choose Century Trailers®?
- 10+ Years of Manufacturing Heritage: Trusted by tens of thousands of Australian trades, councils, and contractors.
- 12-Month Structural Warranty: Nationwide structural peace of mind backed directly by our Queensland branch network.
- Drive-Away Registration Available: On-site QLD vehicle registration can be completed on pickup.
- Flexible Financing: Third-party trade finance and payment plan solutions available to approved customers.
