12×7 Hydraulic Tipper Trailer

With the goal of establishing ourselves amongst the prominent organizations, we are engaged in manufacturing and supplying an exclusive range of high-quality Hydraulic Tipper Trailers. Our Hydraulic Trailers are manufactured by utilizing premium quality materials that are sourced from the trustworthy vendors of the market so they are durable, long-lasting and have high load bearing capability. Available in several technical specifications, these trailers are highly demanded amongst our clients.
From $192.3 p.w. – 0 Interest Free
Sale!
10×6 Hydraulic Tipper Trailer
Hydraulic Tipper Trailer Detail
Hydraulic Tipper Trailer Detail
10×6 Hydraulic Tipper Trailer
Hydraulic Tipper Trailer Detail
Hydraulic Tipper Trailer Detail
Hydraulic Tipper Trailer Detail
Hydraulic Tipper Trailer Detail
Hydraulic Tipper Trailer Detail
Hydraulic Tipper Trailer Detail
Hydraulic Tipper Trailer Detail
Hydraulic Tipper Trailer Detail

$12,500.00 $9,999.00

15″ Spare Wheel *

Spare wheel holder *

On Site Registration

600mm cage *

Pay a deposit of $200.00 per item
Category:
In general, we recommend staying away from bolt together trailers. This does not say bolts are inherently inferior. We have just seen too many poor bolting applications. So we only provide a full weld trailer for Australia conditions.
When you need a trailer made especially for tipping extra heavy loads the hydraulic tipping trailer is made for the job.

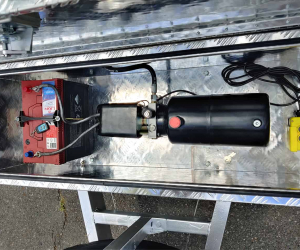

120 AMP Deep Cycle Battery system and Hydraulic pump setting in the toolbox.

Anderson Plug Available,
Trailers come with Australia standards Solid Daxter axle and bearing with Rocker n Roller spring with fully weld spring hangers to help with a heavy load.
4 wheels with 12-inch Electric brake system and brake-away system provide best safety support and reliability.
8-inch jockey wheel mounts on 100mm x 50mm x 1600mm RHS drawbar with manual hand brake. 1900mm long drawbar makes easy reverse and best balance for trailers. Towing safely when you fully load on the highway.
425 mm High side with 600mm Cages set up.without a cage, trailer offer 2 Cube meter soil capacity.With 600mm cage, trailers offer 4600-liter carry capacity.
5 Stages Hydraulic cylinders offer Maximum nearly 85 Degree Tipping angle. Much smooths tilting and sharp angle would help your unloading job.

TECHNICAL SPECIFICATIONS

  • Fully Hot dipped Galvanized Finish
  • 1900mm Draw Bar
  • 3500KG ATM
  • Dual 50mm Solid Dexter Axle with all wheels 12 inch Electrc-Brake
  • Brake Away system
  • Hydraulic Pump with 5 stages cylinders
  • 120 AMP Deep Cycle Battery
  •  3600 mm x 2100 mm interior size
  • 425 mm side
  • 600 mm Cage
  • 8 inch Jockey wheel
  • 2 x Safety Chains
  • 1200 mm x 400 mm x 400 mm Tool box
  • 15 inch Light Truck wheel
  • Side Marker Lights
  • LED Tail Lights
