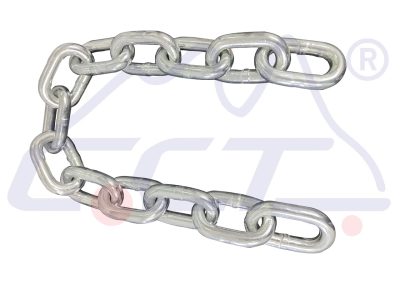

13mm Heavy-Duty Trailer Safety Chain – 3500kg Rated (ADR Approved)
Ensure maximum towing safety and full legal compliance with our premium 13mm Safety Chain. Designed for heavy-duty trailers, horse floats, boat trailers, and commercial equipment trailers up to 3,500kg ATM, this safety chain is engineered to withstand extreme pulling forces and harsh Australian conditions.
Key Features
- Certified Road Compliance: Fully complies with Australian Design Rules (ADR 62/02) and Vehicle Standards Bulletin 1 (VSB1).

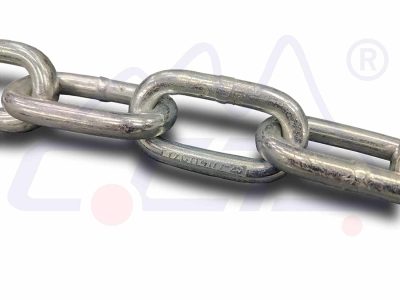

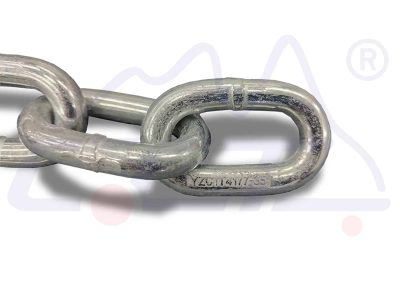

- AS 4177.4:2004 Certified: Tested by accredited facilities and stamped with 4177-35 on every 4th link for easy roadworthy and police inspection verification.
- Heavy-Duty Construction: Made from high-tensile steel with a protective hot-dip galvanized / zinc finish to prevent rust and corrosion.
- Multiple Length Options: Available in 480mm (9 rings) for compact A-frames and 690mm (13 rings) for extended drawbars or off-road hitches. Custom link lengths are also available upon request.
Specifications
| Specification | Detail |
|---|---|
| Chain Thickness | 13mm |
| Atm Capacity Rating | Up to 3,500kg (3.5 Tonne) |
| Marking / Stamp | Stamped “4177-35” every 4th link |
| Standard | AS 4177.4-2004 / ADR 62/02 |
| Available Lengths | 480mm (9 rings) | 690mm (13 rings) |
| Finish | Hot Dip Galvanized / Zinc Coated |
Safety & Legal Requirements
Under Australian ADR 62/02 regulations, trailers over 2,500kg ATM up to 3,500kg ATM must be equipped with two safety chains mounted to the drawbar. Always ensure shackles or hammerlocks used with this chain are rated to match or exceed the trailer’s capacity.
Need a lighter chain for trailers under 2,500kg ATM? View our 10mm Safety Chain (2500kg rated).
