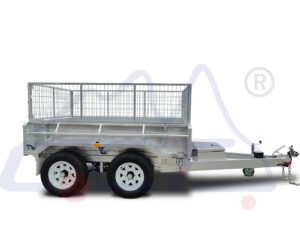

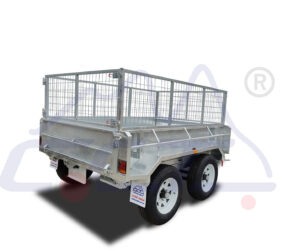

8×5 Hydraulic Tipper Tandem Box Trailer ATM 3500KG

$9,300.00 $8,000.00

15″ Spare Wheel *

Spare wheel holder *

Registration *

Cage *

Canvas Covers *

Pay a deposit of $200.00 per item

Upper Chassis Attached To Main Chassis- NO GAP
To Avoid Cracking, We Use Structure C Chanel Drawbar (1900mmX 120mmX 52mm, Thickness Up to 9.45mm, Average Thickness 7.5mm, No Welding Points) Instead Of RHS Drawbar.
√ LED Lights
√ 120 AMP Deep Cycle Battery System, Australia Wide Warranty
√ Wireless Remote Controller
√ Australia Made Hydraulic Fluid ISO 68
√ 4 Stage 4.5 Ton Ram
√ 1200 mm x 400 mm x 400 mm Toolbox With Hydraulic Pump Setting
Solid Dexter Axle With Rocker n Roller Spring
Fully Welded Spring Hangers
4 Wheels With 12-inch Electric Brake System
Break Away Unit
√ 8-inch jockey wheel √ 195 R15C Wheel √ 2 x 13mm Safety Chains
425 mm High side (600mm/ 900mm Cage Available)
1.65M Slide Underbody Ramps
Swing Up Or Drop Down Rear Door

TECHNICAL SPECIFICATIONS

  • Fully Hot dipped Galvanized Finish
  • 1900mm Structural C-Channel Drawbar (120mm×52mm, Thickness up to 9.45mm, Average thickness 7.5mm)
  • 3500KG ATM
  • Dual 50mm Solid Dexter Axle with all wheels 12 inch Electric Drum Brake
  • Brake Away system
  • Hydraulic Pump with 4 stages cylinders, 4.5Ton Capacity
  • 120A Deep Cycle Battery(Purchase from locally Aussie supplier, One year warranty)
  •  2400mm x 1525mm Interior Size
  • 425mm High Side
  • 8 inch Jockey Wheel
  • 2 x 13mm Safety Chains
  • 1200mm x 400mm x 400mm Tool box
  • 195 R15C wheels
  • LED Tail Lights
  • 600mm Cage or 900mm Cage (Optional)
  • Spare Wheel and Spare Wheel Bracket (Optional)
